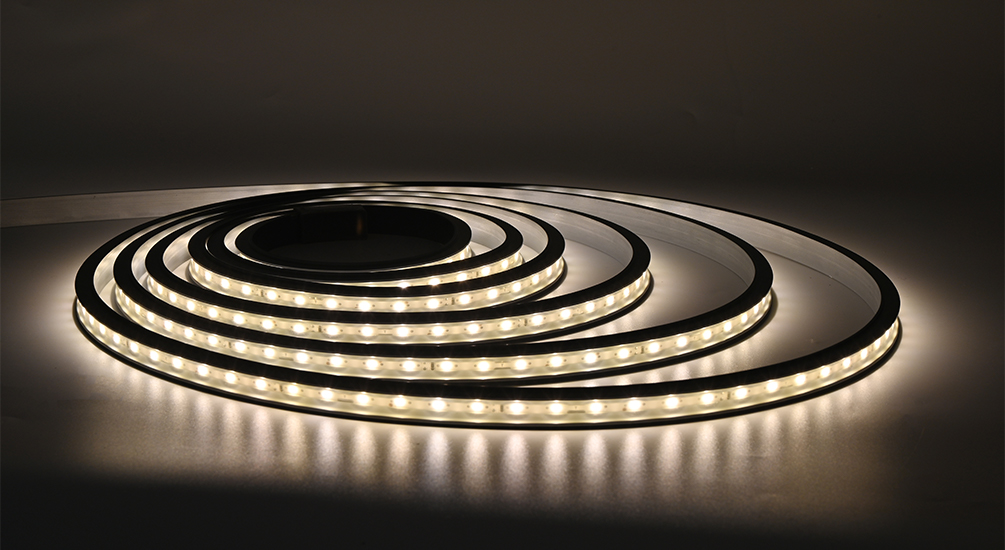

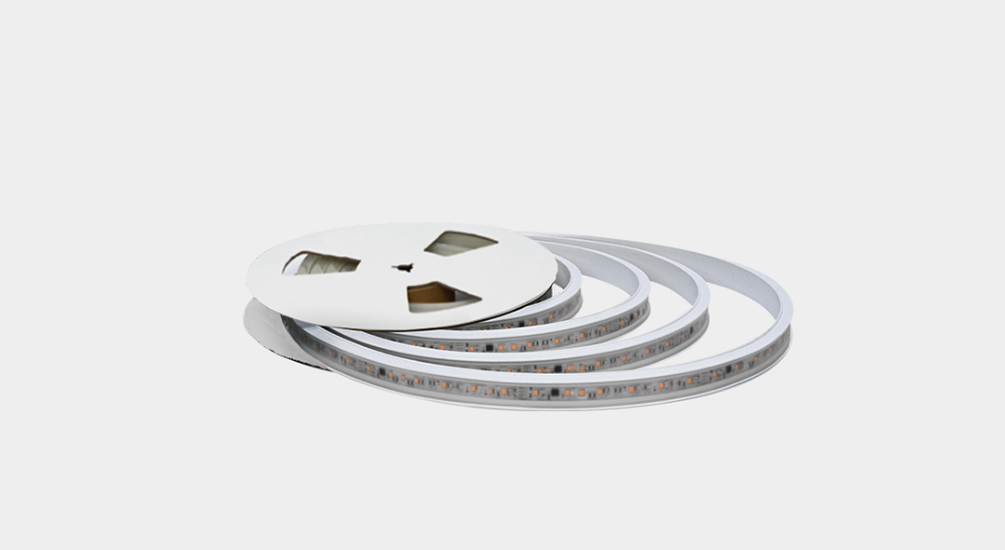

YD-RT16（YA) High brightness flexible led strip lights

Product Model:

Description:Main Performance: High light efficiency and wide illumination range. Easily bend and shape to adapt to various complex installation environments and shape requirements. It can be used in conjunction with various sensors and terminal devices such as mobile phones and computers to achieve different effects of human-light interaction Application Scene:It is mainly used for lighting of buildings, parks and scenic spots, and media screens. It can also be used to outline the contours of large buildings, bridges and overpasses at a distance.

Characteristic:

Product Consultation

Home >Product Center > High brightness flexible led strip lights > YD-RT16（YA) High brightness flexible led strip lights

Specification

Protection Grade：

IP68

IK Grade：

IK10

UV Grade：

Surface shows no apparent changes （GB/T 16422.3-2014 ）

Neutral Salt Spray：

48H

Product Certification ：

CE、FCC、BIS

Flame Retardant Grade：

V-0

Anti-High And Low Temperature：

-40°C~+55°C / -40°F~+131°F

Configuration

Serial Number:	Voltage	Power	LED Color	Control Method	Pixel/m	Beam Angle
01	DC24V	5W	W	ON/OFF	/	110°
02	DC24V	10W	W	ON/OFF	/	110°
03	DC12V	7W	RGB	SPI	/	110°

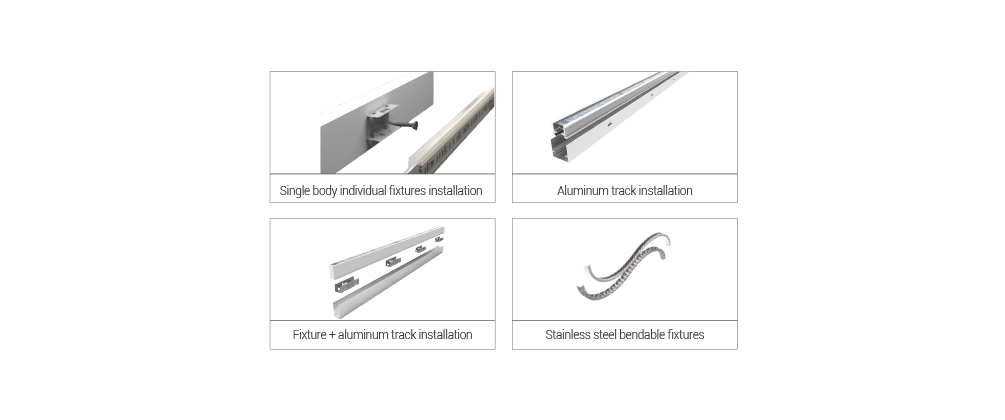

Installation

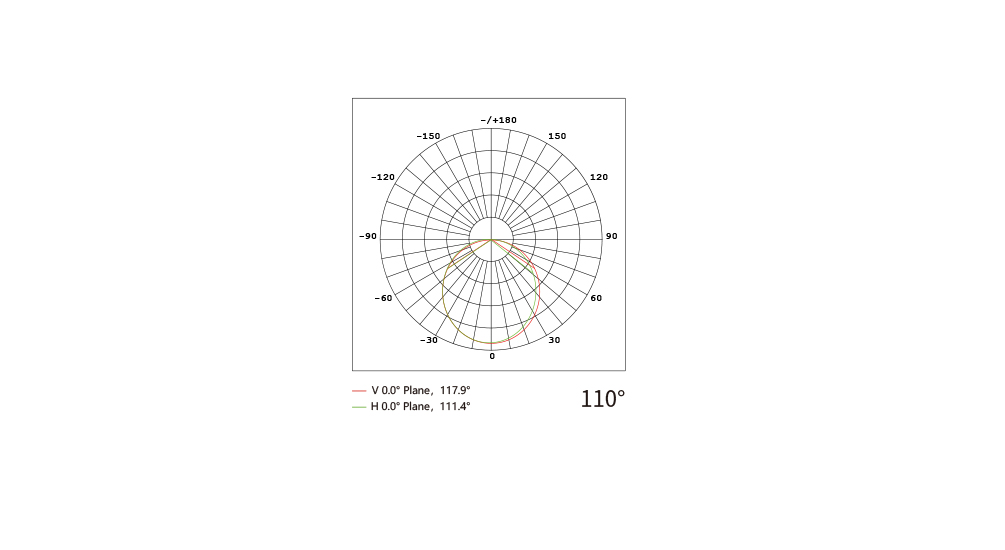

Luminosity Distribution

YD-RT16（YA) High brightness flexible led strip lights

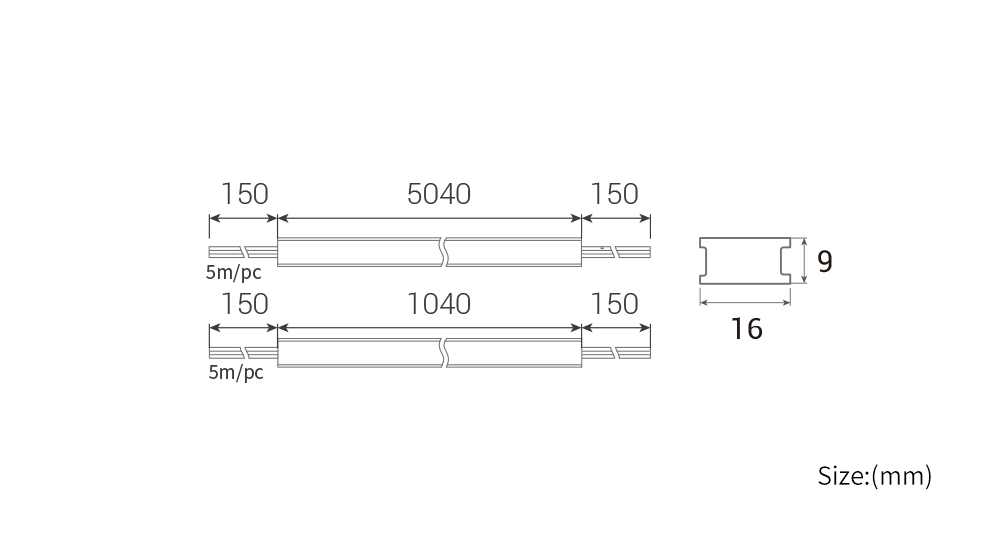

Product Size

YD-RT16（YA) High brightness flexible led strip lights
