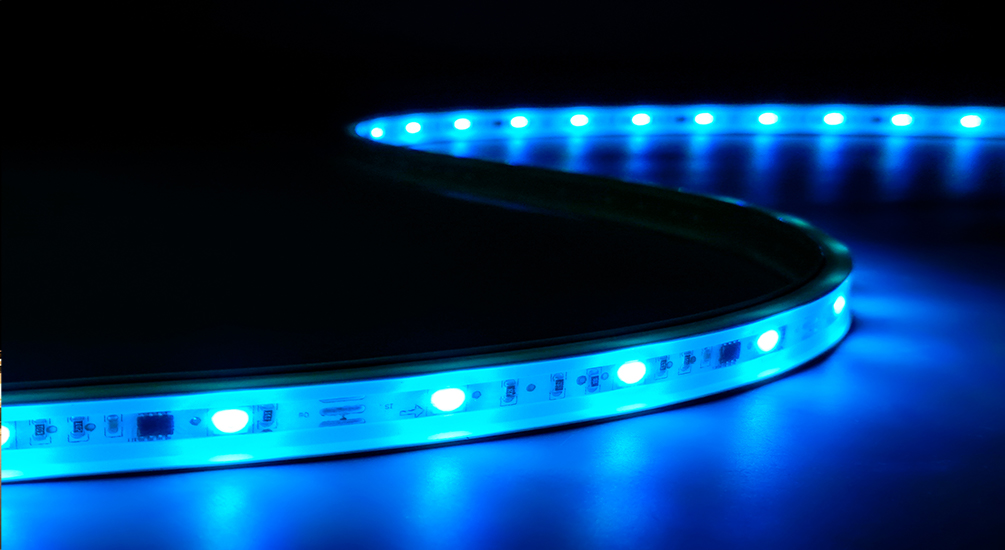

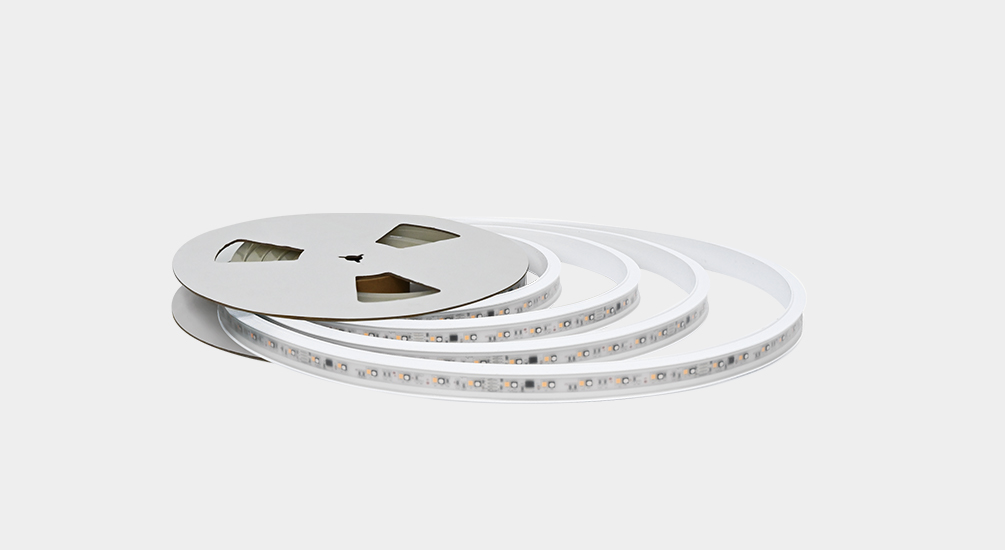

YD-RXTY-18A High brightness flexible led strip lights-Hangzhou YD Illumination Co., Ltd

Description:Main Performance: High light efficiency and wide illumination range. Easily bend and shape to adapt to various complex installation environments and shape requirements. It can be used in conjunction with various sensors and terminal devices such as mobile phones and computers to achieve different effects of human-light interaction
Application Scene:It is mainly used for lighting of buildings, parks and scenic spots, and media screens. It can also be used to outline the contours of large buildings, bridges and overpasses at a distance.

Characteristic:

Product Consultation

Home >Product Center > High brightness flexible led strip lights > YD-RXTY-18A High brightness flexible led strip lights

Security

Protection Grade：

IP68

Flame Retardant Grade：

V-0

UV Grade：

Surface shows no apparent changes （GB/T 16422.3-2014 ）

IK Grade：

IK10

Neutral Salt Spray：

48H

Anti-High And Low Temperature：

-40°C~+55°C / -40°F~+131°F

Product Certification ：

CE、FCC、BIS

Configuration

Serial Number:	Voltage	Power	LED Color	Control Method	Pixel/m	Beam Angle
01	DC24V	5W/m	R/G/B/W...	SPI	5	110°
02	DC24V	5W/m	R/G/B/W...	SPI	10	110°
03	DC24V	7.5W/m	R/G/B/W...	SPI	8	110°
04	DC24V	7.5W/m	W+W	SPI	8	110°
05	DC12V	7W/m	RGB	SPI	10	110°
06	DC24V	7W/m	RGB	SPI	5	110°
07	DC24V	14W/m	RGB	SPI	10	110°
08	DC24V	9W/m	RGB	SPI	6	110°
09	DC24V	12W/m	RGB	SPI	8	110°
10	DC24V	9W/m	RGB	DMX512	6	110°
11	DC24V	12W/m	RGB	DMX512	8	110°
12	DC24V	12W/m	RGB+W	SPI	6	110°
13	DC24V	15W/m	RGB+W	SPI	8	110°
14	DC24V	12W/m	RGB+W	DMX512	6	110°
15	DC24V	5W/m	RGB+W	DMX512	8	110°
