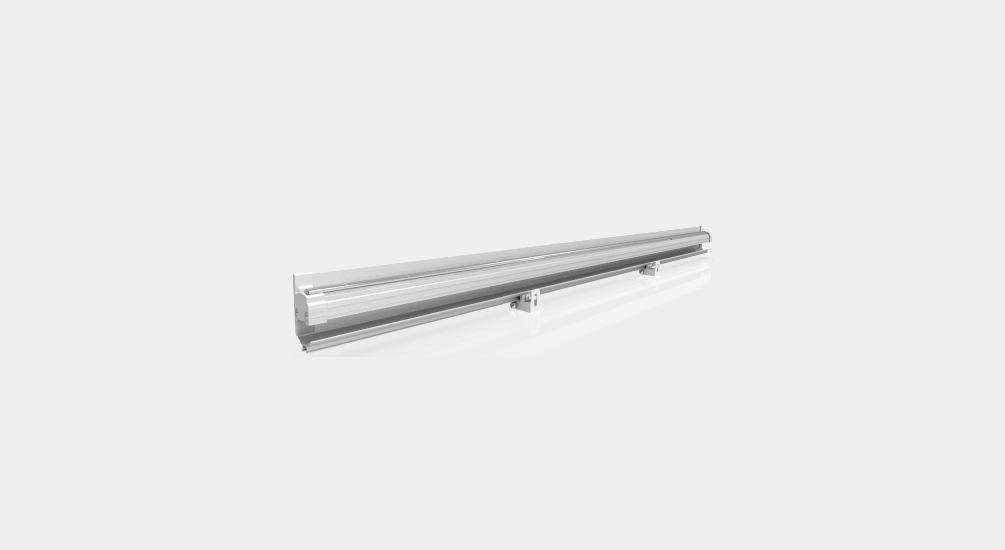

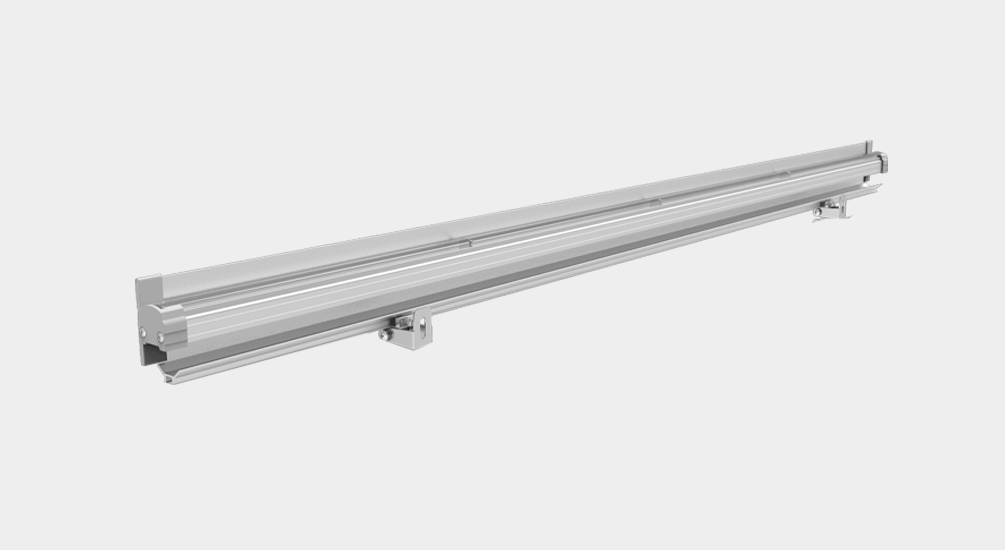

LED wall washer lights with cable trunkings YD-XQY-18C
Product Model: YD-XQY-18C
Description:• With advanced secondary optical design. • Adopting completely independent intellectual property rights of Macromolecule polymer alloy materials and double protection technology. • The lamps achieve outdoor permanent using standards with Highest Protection Grade IP68, Flame Retardant Grade V-0, UV and Anti-aging. • This series lamps achieves high light efficiency and intelligent control. • Can be used for a long time in harsh environments such as outdoor, underground, underwater (sea water). • It has conventional, DC48V, RDM and constant power different series to meet the multiple requirements of outdoor lighting
Mainly used in wall washing lighting on facade of large urban building, the contour outlining of urban overpass and bridge, swimming pool, park etc.
Characteristic:
Home >Product Center > LED Wall Washer Lights with Cable Trunking > LED wall washer lights with cable trunkings YD-XQY-18C
Security
Protection Grade:
IP68
Flame Retardant Grade:
V-0
UV Grade:
Surface shows no apparent changes (GB/T 16422.3-2014 )
IK Grade:
IK10
Neutral Salt Spray:
48H
Anti-High And Low Temperature:
-40°C~+55°C / -40°F~+131°F
Product Certification :
CE、FCC
Configuration
Serial Number: Voltage Power LED Color Control Method Pixel/m Beam Angle
01 DC24V 7.5W R\G\B\W... ON/OFF / 120°
02 DC24V 7.5W R\G\B\W... SPI 4 120°
03 DC12V 9W RGB SPI 12 120°
04 DC24V 12W RGB SPI 8 120°
05 DC12V 12W RGB+W SPI 12 120°
06 DC24V 15W RGB+W SPI 8 120°
Luminosity Distribution
LED wall washer lights with cable trunkings YD-XQY-18C

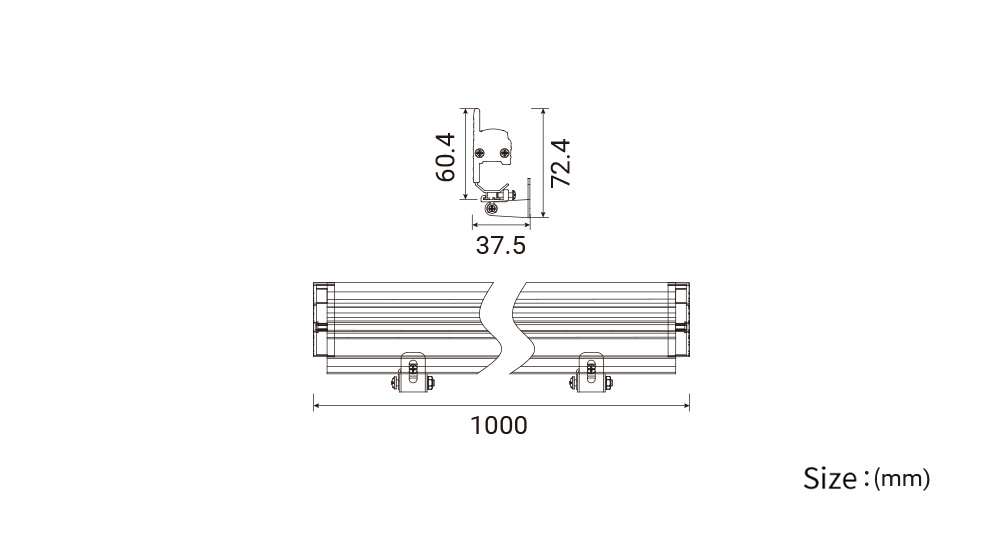

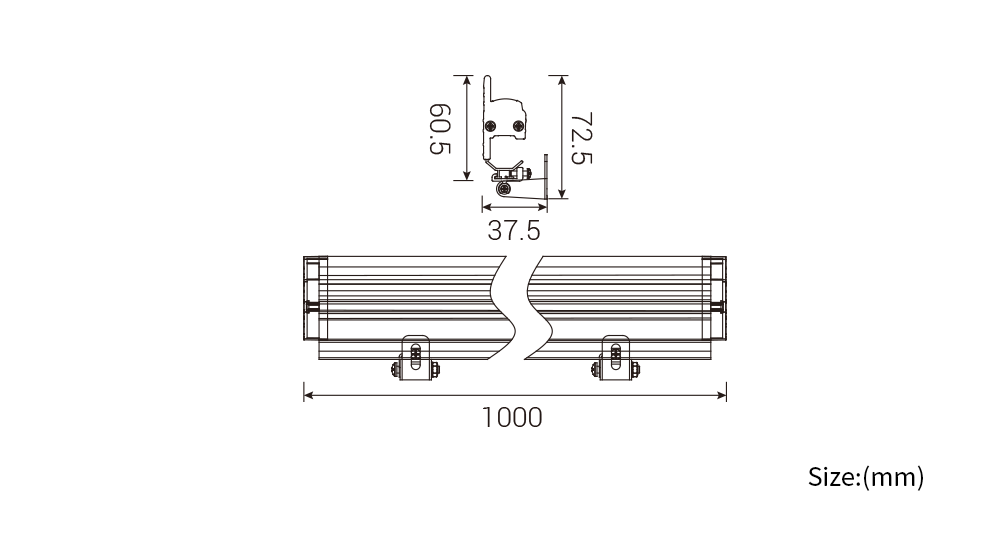

Product Size
LED wall washer lights with cable trunkings YD-XQY-18C
