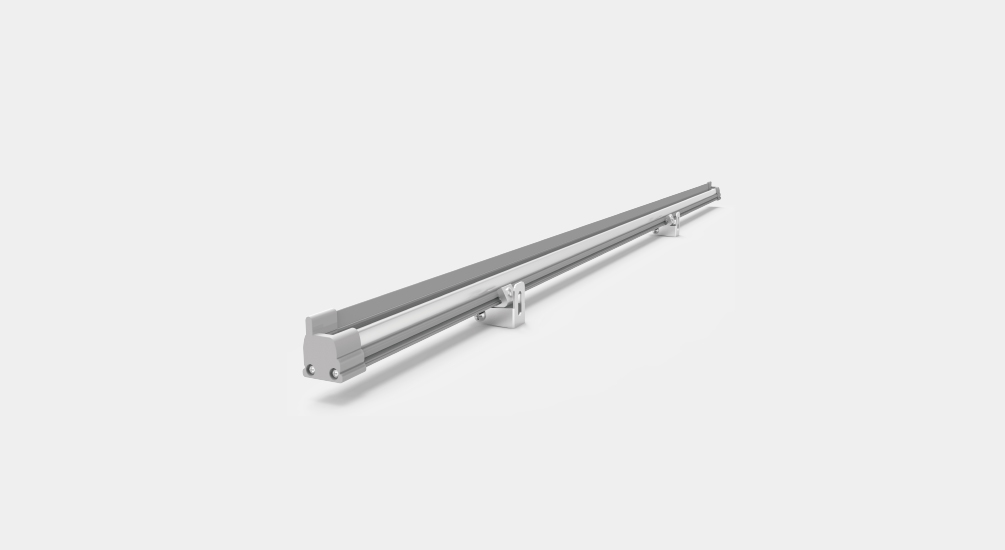

LED wall washer lights with cable trunkings YD-XQY-16C-Hangzhou YD Illumination Co., Ltd

Description:• With advanced secondary optical design. • Adopting completely independent intellectual property rights of Macromolecule polymer alloy materials and double protection technology. • The lamps achieve outdoor permanent using standards with Highest Protection Grade IP68, Flame Retardant Grade V-0, UV and Anti-aging. • This series lamps achieves high light efficiency and intelligent control. • Can be used for a long time in harsh environments such as outdoor, underground, underwater (sea water). • It has conventional, DC48V, RDM and constant power different series to meet the multiple requirements of outdoor lighting
Mainly used in wall washing lighting on facade of large urban building, the contour outlining of urban overpass and bridge, swimming pool, park etc.

Characteristic:

Product Consultation

Home >Product Center > LED Wall Washer Lights with Cable Trunking > LED wall washer lights with cable trunkings YD-XQY-16C

Security

Protection Grade:

IP68

Flame Retardant Grade：

V-0

UV Grade：

Surface shows no apparent changes （GB/T 16422.3-2014 ）

IK Grade：

IK10

Neutral Salt Spray：

48H

Anti-High And Low Temperature：

-40°C~+55°C / -40°F~+131°F

Product Certification ：

CE、FCC

Configuration

Serial Number:	Voltage	Power	LED Color	Control Method	Pixel/m	Beam Angle
01	DC24V	7W	R\G\B\W...	ON/OFF	/	120°
02	DC24V	9	R\G\B\W...	ON/OFF	/	120°
03	DC24V	12	R\G\B\W...	ON/OFF	/	120°
04	DC24V	15	R\G\B\W...	ON/OFF	/	120°
05	DC48V	7	R\G\B\W...	ON/OFF	/	120°
06	DC48V	10	R\G\B\W...	ON/OFF	/	120°
07	DC48V	12	R\G\B\W...	ON/OFF	/	120°
08	DC48V	15	R\G\B\W...	ON/OFF	/	120°
09	DC24V	12	R\G\B\W...	SPI	8	120°
10	DC24V	10	R\G\B\W...	SPI	6	120°
11	DC24V	7	R\G\B\W...	SPI	5	120°
12	DC48V	9	R\G\B\W...	SPI	6	120°
13	DC48V	12	R\G\B\W...	SPI	8	120°
14	DC24V	9	RGB	SPI	6	120°
15	DC24V	12	RGB	SPI	8	120°
16	DC24V	12	RGB+W	SPI	6	120°
17	DC24V	12	RGB+W	SPI	8	120°
