YD-RXTY-18A (Side-Emitting Light) High brightness flexible led strip lights

Product Model:YD-RXTY-18A (Side-Emitting Light)

Description:Main Performance: High light efficiency and wide illumination range. Easily bend and shape to adapt to various complex installation environments and shape requirements. It can be used in conjunction with various sensors and terminal devices such as mobile phones and computers to achieve different effects of human-light interaction
Application Scene:It is mainly used for lighting of buildings, parks and scenic spots, and media screens. It can also be used to outline the contours of large buildings, bridges and overpasses at a distance.

Characteristic:

Product Consultation

Home >Product Center > High brightness flexible led strip lights > YD-RXTY-18A (Side-Emitting Light) High brightness flexible led strip lights

Security

Protection Grade：

IP68

Flame Retardant Grade：

V-0

UV Grade：

Surface shows no apparent changes（GB/T 16422.3-2014 ）

IK Grade：

IK10

Neutral Salt Spray：

48H

Anti-High And Low Temperature：

-40°C~+55°C / -40°F~+131°F

Product Certification:

CE、FCC、BIS

Configuration

Serial Number:	Voltage	Power	LED Color	Control Method	Pixel/m	Beam Angle
01	DC24V	5W/m	R/G/B/W...	ON/OFF	/	110°
02	DC24V	10W/m	R/G/B/W...	ON/OFF	/	110°
03	DC24V	5W/m	R/G/B/W...	SPI	10	110°
04	DC24V	7.5W/m	R/G/B/W...	SPI	8	110°

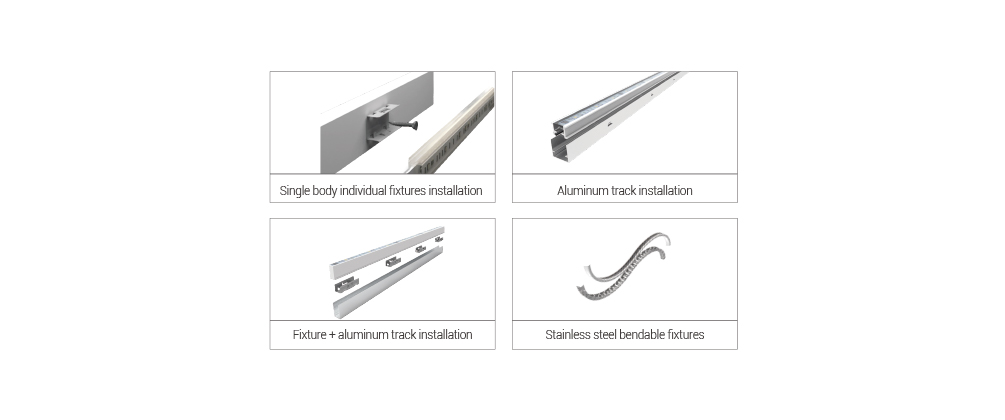

Installation

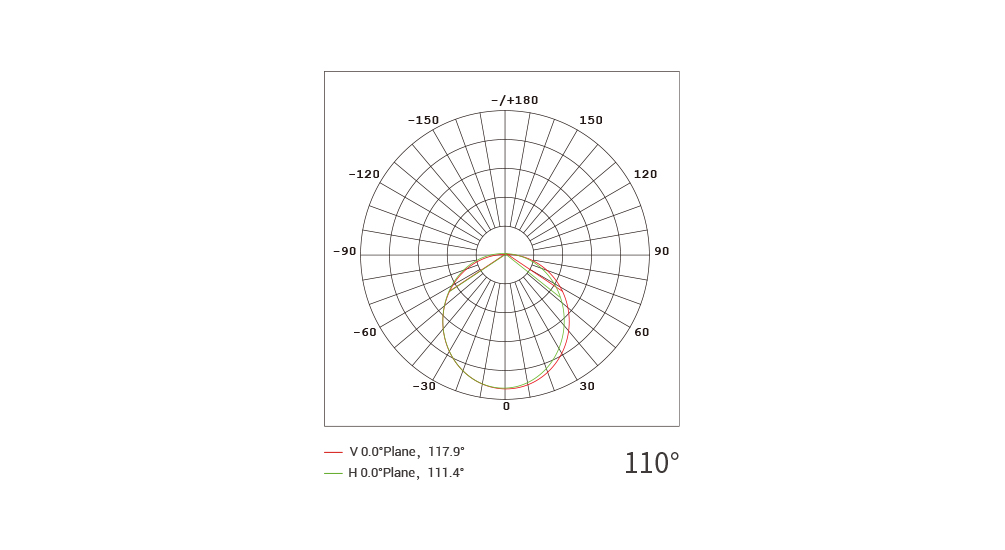

Luminosity Distribution

YD-RXTY-18A (Side-Emitting Light) High brightness flexible led strip lights

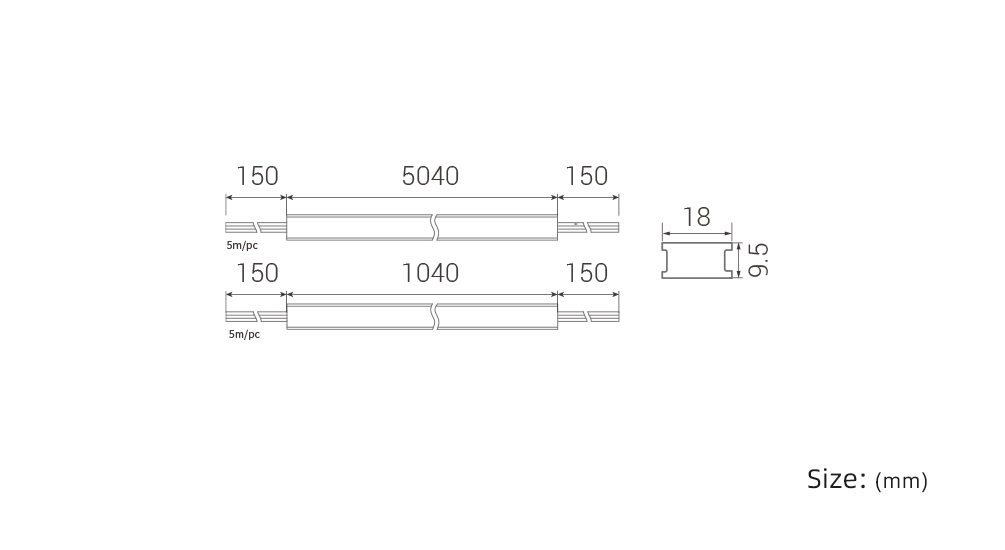

Product Size

YD-RXTY-18A (Side-Emitting Light) High brightness flexible led strip lights
