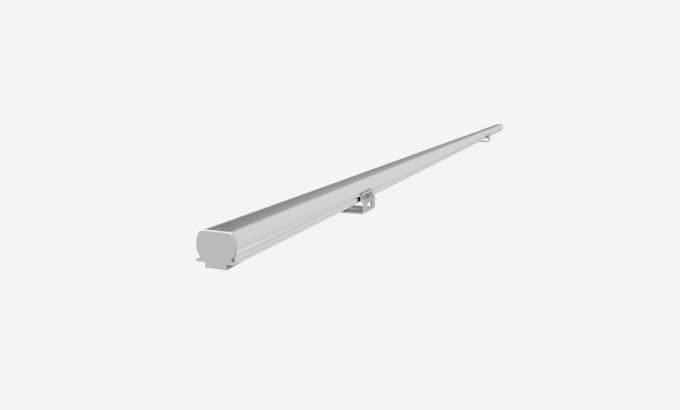

Ultra-Thin Linear Lights YD-XTY-16A

Product Model: YD-XTY-16A

Description:·Ultra-thin light body,space-saving suitable for a varietyof installation environments. ·Various installation methods,efficient and convenient. ·Smooth lines light concentration. ·Protection level up to IP68,long service life. ·It has conventional,DC48V,RDMand constant power different series to meet the multiple requirements ofoutdoor ighting.
Ultra-thin design is most suitable for hidden installation in narrow structures such as curtain walls of buildings and handrails of roads and bridges. Outline the large buildings such as buildings, elevated, bridges and so on. Parks, gardens, scenic spots,rivers,embankments and other landscape lighting. Building facade, curtain wall large display.

Characteristic:

Product Consultation

Security

Protection Grade:

IP68

Flame Retardant Grade：

V-0

UV Grade：

Surface shows no apparent changes （GB/T 16422.3-2014 ）

IK Grade：

IK10

Neutral Salt Spray：

48H

Anti-High And Low Temperature：

-40°C~+55°C / -40°F~+131°F

Product Certification ：

CE、FCC

Configuration

Serial Number:	Voltage	Power	LED Color	Control Method	Pixel/m	Beam Angle
01	DC24V	1.5W	R\G\B\W...	ON/OFF	/	110°
02	DC24V	1.5W	R\G\B\W...	ON/OFF	/	110°
03	DC24V	2.5W	R\G\B\W...	ON/OFF	/	110°
04	DC24V	3W	R\G\B\W...	ON/OFF	/	110°
05	DC24V	4W	R\G\B\W...	ON/OFF	/	110°
06	DC24V	3W	R\G\B\W...	ON/OFF	/	110°
07	DC24V	3.5W	R\G\B\W...	ON/OFF	/	110°
08	DC24V	4.5W	R\G\B\W...	ON/OFF	/	110°
09	DC24V	7.5W	R\G\B\W...	ON/OFF	/	110°
10	DC24V	6W	R\G\B\W...	ON/OFF	/	110°
11	DC24V	7W	R\G\B\W...	ON/OFF	/	110°
12	DC24V	9W	R\G\B\W...	ON/OFF	/	110°
13	DC24V	12W	R\G\B\W...	ON/OFF	/	110°
14	DC24V	15W	R\G\B\W...	ON/OFF	/	110°
15	DC24V	12W	R\G\B\W...	SPI	8	110°
16	DC24V	10W	R\G\B\W...	SPI	6	110°
17	DC24V	7W	R\G\B\W...	SPI	5	110°
18	DC48V	9W	R\G\B\W...	SPI	6	110°
19	DC48V	12W	R\G\B\W...	SPI	8	110°
20	DC24V	9W	RGB	SPI	6	110°
21	DC24V	12W	RGB	SPI	8	110°
22	DC24V	12W	RGB+W	SPI	6	110°
23	DC24V	15W	RGB+W	SPI	8	110°
24	DC48V	7W	R\G\B\W...	ON/OFF	/	110°
25	DC48V	10W	R\G\B\W...	ON/OFF	/	110°
26	DC48V	12W	R\G\B\W...	ON/OFF	/	110°
27	DC48V	15W	R\G\B\W...	ON/OFF	/	110°
