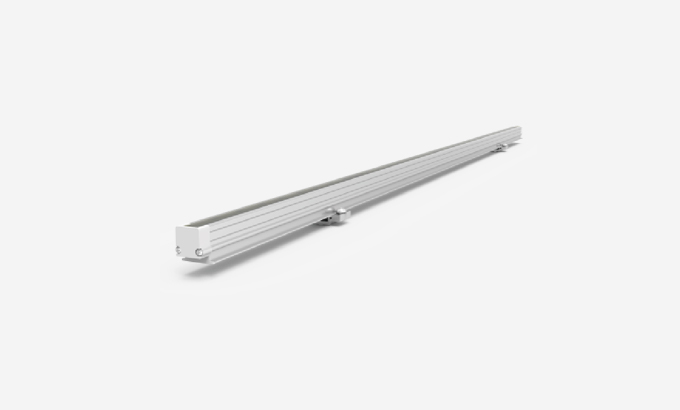

Ultra-Thin Linear Lights YD-XT-15A
Product Model: YD-XT-15A
Description:·Ultra-thin light body,space-saving suitable for a varietyof installation environments. ·Various installation methods,efficient and convenient. ·Smooth lines light concentration. ·Protection level up to IP68,long service life. ·It has conventional,DC48V,RDMand constant power different series to meet the multiple requirements ofoutdoor ighting.
Ultra-thin design is most suitable for hidden installation in narrow structures such as curtain walls of buildings and handrails of roads and bridges. Outline the large buildings such as buildings, elevated, bridges and so on. Parks, gardens, scenic spots,rivers,embankments and other landscape lighting. Building facade, curtain wall large display.
Characteristic:
Home >Product Center > Ultra-Thin Linear Lights > Ultra-Thin Linear Lights YD-XT-15A
Security
Protection Grade:
IP68
Flame Retardant Grade:
V-0
UV Grade:
Surface shows no apparent changes (GB/T 16422.3-2014 )
IK Grade:
IK10
Neutral Salt Spray:
48H
Anti-High And Low Temperature:
-40°C~+55°C / -40°F~+131°F
Product Certification :
CE、FCC
Configuration
Serial Number: Voltage Power LED Color Control Method Pixel/m Beam Angle
01 DC24V 7.5W R\G\B\W... ON/OFF / 110°
02 DC24V 7.5W R\G\B\W... SPI 4 110°
03 DC12V 9W RGB SPI 12 110°
04 DC12V 9W RGB SPI 4 110°
05 DC24V 12W RGB SPI 8 110°
06 DC24V 15W RGB+W SPI 8 110°

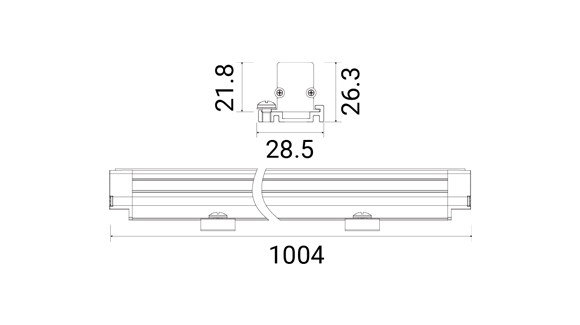

Product Size
Ultra-Thin Linear Lights YD-XT-15A
