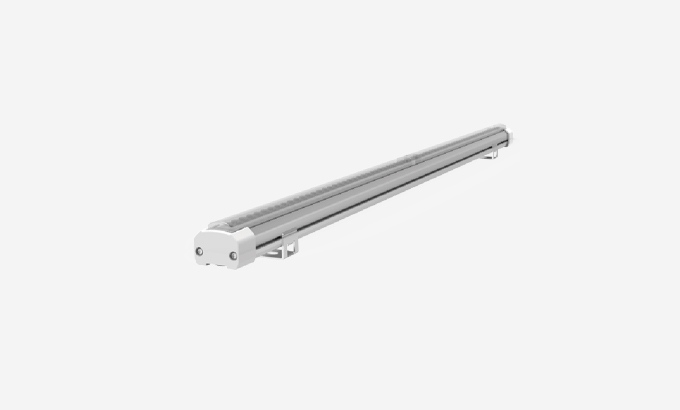

Ultra-Narrow Linear Lights YD-XTY-18A-Hangzhou YD Illumination Co., Ltd

Description:Adopting double protection technology, the protection level reaches the highest IP68. Ultra-narrow design of the lamp body, especially suitable for the need to hide the installation or narrow space lighting occasions. It has conventional, DC48V, RDM and constant power different series to meet the multiple requirements of outdoor lighting.
Ultra-narrow design is suitable for hidden installation in narrow structures such as staircase curtain walls, road and bridge handrails. Suitable for parks, gardens, scenic spots, rivers, riverbanks and other decorative or functional lighting occasions that require hidden installation. It is also suitable for indoor lighting occasions such as concealed grooves.

Characteristic:

Product Consultation

Home >Product Center > Ultra-Narrow Linear > Ultra-Narrow Linear Lights YD-XTY-18A

Security

Protection Grade:

IP68

Flame Retardant Grade：

V-0

UV Grade：

Surface shows no apparent changes （GB/T 16422.3-2014 ）

IK Grade：

IK10

Neutral Salt Spray：

48H

Anti-High And Low Temperature：

-40°C~+55°C / -40°F~+131°F

Product Certification ：

CE、FCC

Configuration

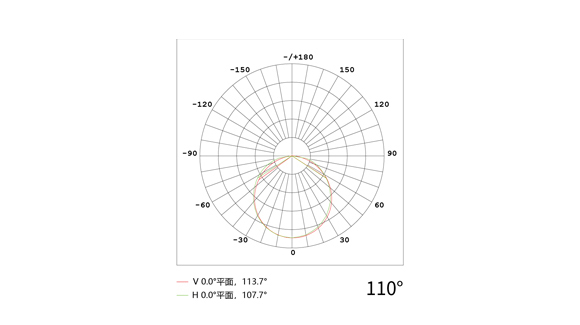

Serial Number:	Voltage	Power	LED Color	Control Method	Pixel/m	Beam Angle
01	DC24V	7.5W	R\G\B\W...	ON\OFF	/	110°
02	DC24V	9W	R\G\B\W...	ON\OFF	/	110°
03	DC24V	12W	R\G\B\W...	ON\OFF	/	110°
04	DC24V	12W	R\G\B\W...	SPI	4	110°
05	DC24V	7.5W	R\G\B\W...	SPI	4	110°
06	DC12V	9W	RGB	SPI	12	110°
07	DC24V	12W	RGB	SPI	8	110°
08	DC12V	12W	RGB+W	SPI	12	110°
09	DC24V	15W	RGB+W	SPI	8	110°
