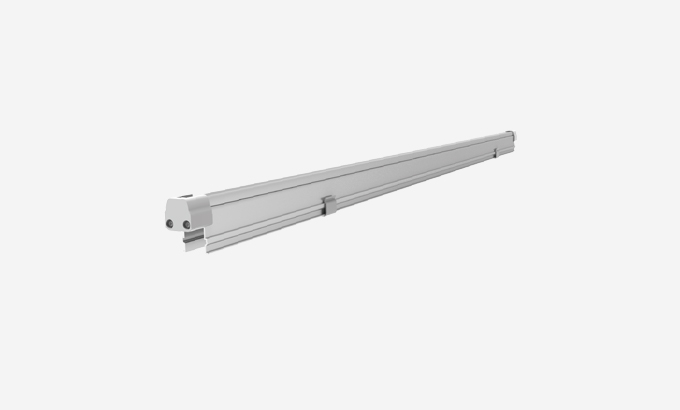

Ultra-Narrow Linear Lights YD-XTY-16A
Product Model:YD-XTY-16A
Description:Adopting double protection technology, the protection level reaches the highest IP68. Ultra-narrow design of the lamp body, especially suitable for the need to hide the installation or narrow space lighting occasions. It has conventional, DC48V, RDM and constant power different series to meet the multiple requirements of outdoor lighting.
Ultra-narrow design is suitable for hidden installation in narrow structures such as staircase curtain walls, road and bridge handrails. Suitable for parks, gardens, scenic spots, rivers, riverbanks and other decorative or functional lighting occasions that require hidden installation. It is also suitable for indoor lighting occasions such as concealed grooves.
Characteristic:
Home >Product Center > Ultra-Narrow Linear > Ultra-Narrow Linear Lights YD-XTY-16A
Security
Protection Grade:
IP68
Flame Retardant Grade:
V-0
UV Grade:
Surface shows no apparent changes (GB/T 16422.3-2014 )
IK Grade:
IK10
Neutral Salt Spray:
48H
Anti-High And Low Temperature:
-40°C~+55°C / -40°F~+131°F
Product Certification :
CE、FCC
Configuration
Serial Number: Voltage Power LED Color Control Method Pixel/m Beam Angle
01 DC24V 12W R\G\B\W... SPI 8 110°
02 DC24V 10W R\G\B\W... SPI 6 110°
03 DC24V 7W R\G\B\W... SPI 5 110°
04 DC48V 9W R\G\B\W... SPI 6 110°
05 DC48V 12W R\G\B\W... SPI 8 110°
06 DC24V 9W RGB SPI 6 110°
07 DC24V 12W RGB SPI 8 110°
08 DC24V 12W RGB+W SPI 6 110°
09 DC24V 15W RGB+W SPI 8 110°

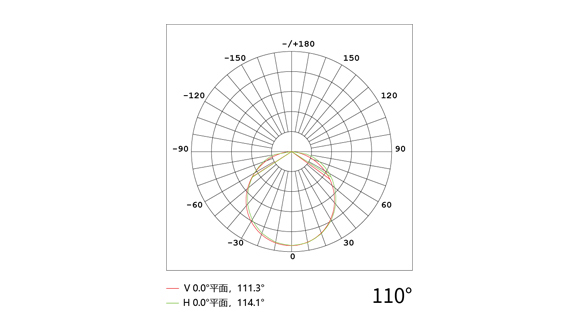

Luminosity Distribution
Ultra-Narrow Linear Lights YD-XTY-16A

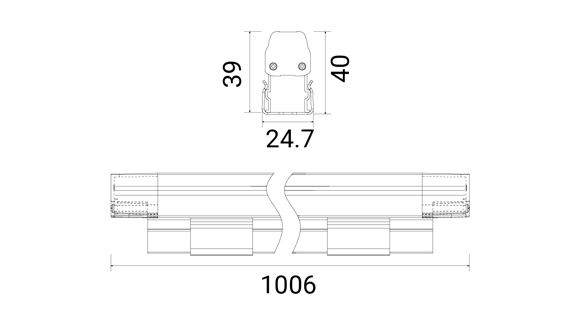

Product Size
Ultra-Narrow Linear Lights YD-XTY-16A
