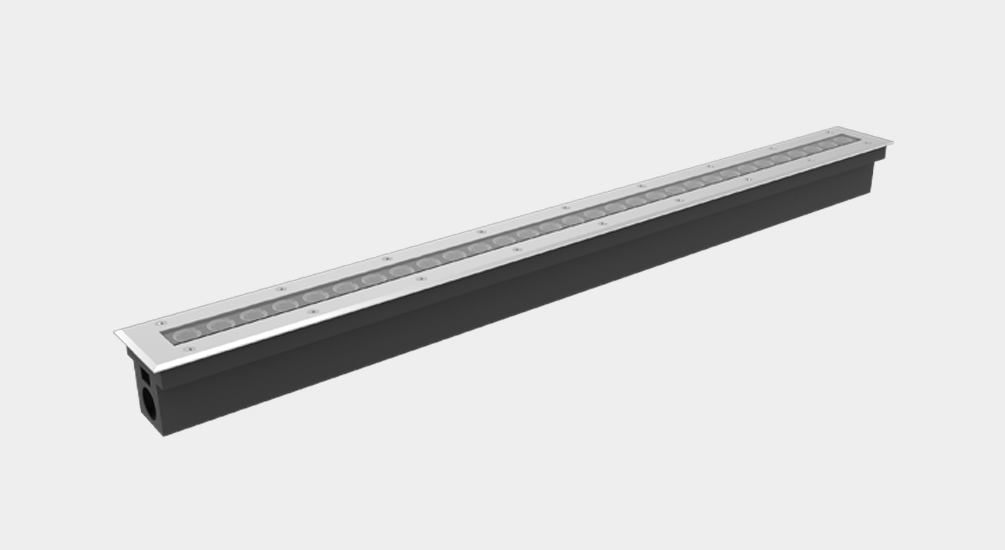

YD-DM90W(ZC) Rectangular LED Underground Flood Light-Hangzhou YD Illumination Co., Ltd

Main Performance:Built in high-power waterproof module light source and professional lens, with high projection height and adjustable beam angle. Made of high-density pure aluminum casting and non-slip tempered glass. Transparent and ultra-thin design suitable for both indoor and outdoor use. Adopting double protection technology, the protection grade reaches the highest level of IP68, and the impact resistance performance reaches IK10.

Application Scene:Suitable for inground floodlighting in hotels, hotel lobbies, commercial streets, pedestrian streets, city squares, garden landscapes, courtyard villas, building facades, and other areas.

Characteristic:

Product Consultation

Home >Product Center > Rectangular LED Underground Floodlights > YD-DM90W(ZC) Rectangular LED Underground Flood Light

Security

Protection Grade:

IP68

Flame Retardant：

V-0

UV Grade：

Surface shows no apparent changes（GB/T 16422.3-2014 ）

IK Grade：

IK10

Neutral Salt Spray：

48H

Anti-High And Low Temperature：

-40°C~+55°C / -40°F~+131°F

Product Certification ：

CE、FCC

Parameter

Serial Number:	Voltage	Power	LED Color	Control Method	Beam Angle
01	DC24V	18W	W	ON/OFF	15°、30°、45°
02	DC24V	24W	W	ON/OFF	15°、30°、45°
03	DC24V	30W	W	ON/OFF	15°、30°、45°
04	DC24V	30W	RGB	DMX512	45°
05	DC24V	18W	RGB	DMX512	45°
06	DC24V	24W	RGB	DMX512	45°
