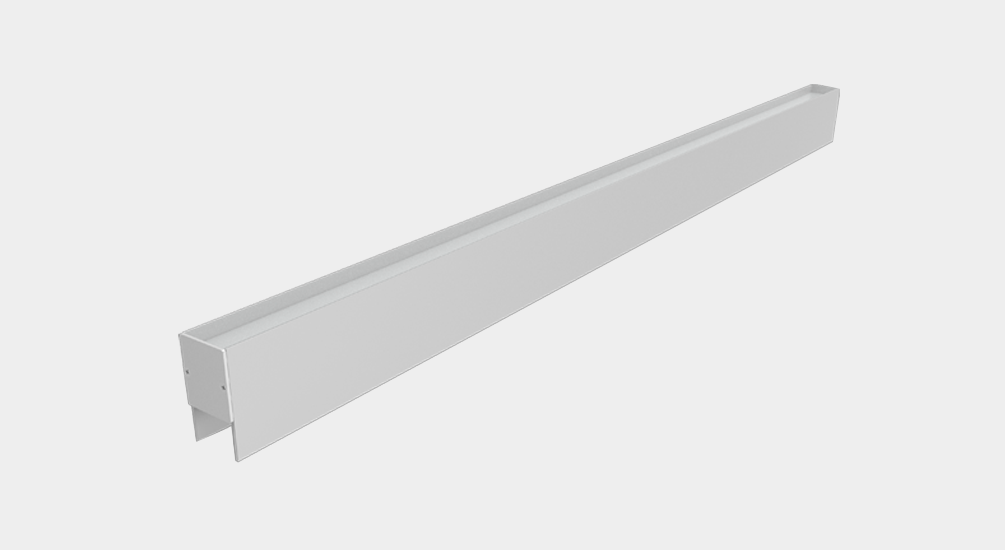

YD-DM40W(YC) Long Strip Underground Light

Main Performance:The integrated molding technology is used to avoid condensation of water droplets inside the lamp. The light-emitting surface is evenly lit, and there is no glare when watching from a close distance. The protection level reaches the highest level IP68, and the impact resistance reaches IK10.

Application Scene:Primarily used for large-scale plaza landscape lighting, ground illumination in urban public spaces, and urban buried landscape lights. Also suitable for underwater landscape lighting in locations such as pools, fountains, and aquariums.

Characteristic:

Product Consultation

Home >Product Center > Long Strip Underground Lights > YD-DM40W(YC) Long Strip Underground Light

Security

Protection Grade:

IP68

Flame Retardant：

V-0

UV Grade：

Surface shows no apparent changes（GB/T 16422.3-2014 ）

IK Grade：

IK10

Neutral Salt Spray：

48H

Anti-High And Low Temperature：

-40°C~+55°C / -40°F~+131°F

Product Certification ：

CE、FCC

Parameter

Serial Number:	Voltage	Power	LED Color	Control Method	Pixel/set	Beam angle
01	DC24V	12W	W	ON/OFF	/	110°
02	DC24V	12W	W	DMX512	8	110°
03	DC24V	12W	RGB	DMX512	1	110°
04	DC24V	12W	RGB	DMX512	8	110°

Luminosity Distribution

YD-DM40W(YC) Long Strip Underground Light

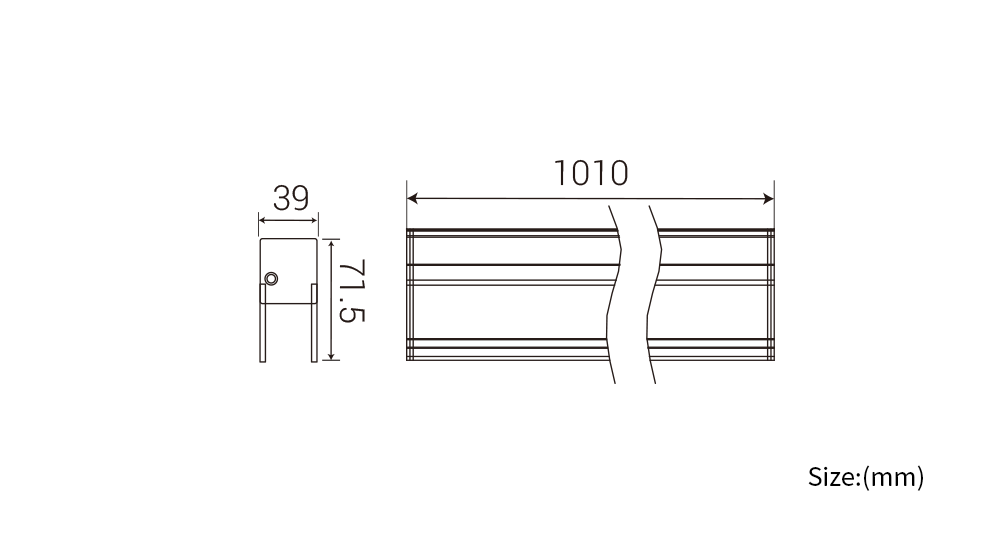

Product Size

YD-DM40W(YC) Long Strip Underground Light
