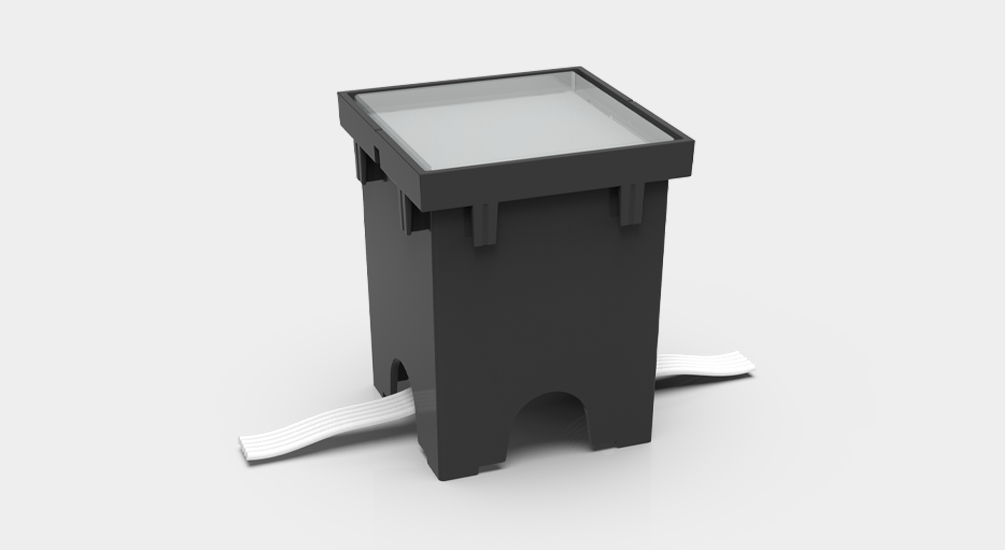

YD-DT100W(YB) Square Narrow-edge Underground Light
Main Performance:The integrated molding technology is used to avoid condensation of water droplets inside the lamp. The uniform light design of the luminous surface ensures glare-free viewing at close range. The embedded plug-in installation enables seamless splicing of lamps. The shape and surface pattern customization are supported. The protection level reaches the highest level IP68, and the impact resistance reaches IK10.
Application Scene:Ideal for outdoor ground lighting and smart lighting in locations such as squares, parks, lawns, and pedestrian streets.
Characteristic:
Product Consultation
Home >Product Center > Square Narrow-Edge Underground Lights > YD-DT100W(YB) Square Narrow-edge Underground Light
Security
Protection Grade:
IP68
Flame Retardant：
V-0
UV Grade：
Surface shows no apparent changes（GB/T 16422.3-2014 ）
IK Grade：
IK10
Neutral Salt Spray：
48H
Anti-High And Low Temperature：
-40°C~+55°C / -40°F~+131°F
Product Certification ：
CE、FCC
Parameter
Serial Number: Voltage Power LED Color Control Method Pixel/set Beam angle
01 DC24V 1.5W W ON/OFF / 110°
02 DC24V 4.5W RGB DMX512 1 110°
Luminosity Distribution
YD-DT100W(YB) Square Narrow-edge Underground Light

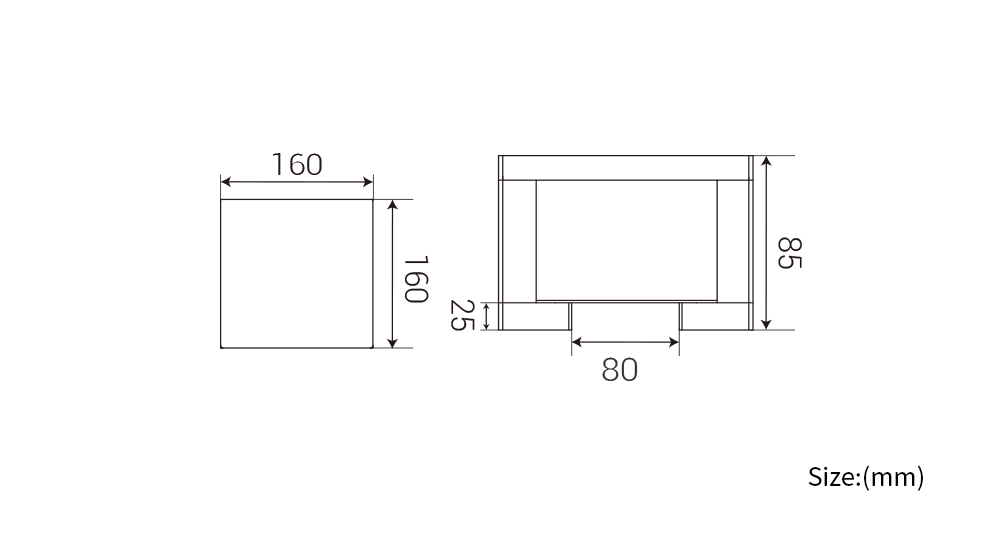

Product Size
YD-DT100W(YB) Square Narrow-edge Underground Light
