YD-DM90W(YB) Square Frameless Underground Light

Main Performance:Integrated design with frosted glass housing for anti-slip and anti-glare properties. Frameless design maximizes the light-emitting surface area without shadowed or dark zones. Achieves the highest IP68 protection rating and IK10 impact resistance.

Application Scene:Suitable for ground lighting in leisure areas such as squares, outdoor parks, gardens, flower beds, and commercial pedestrian streets.

Characteristic:

Product Consultation

Home >Product Center > Square Frameless Underground Lights > YD-DM90W(YB) Square Frameless Underground Light

Security

Protection Grade:

IP68

Flame Retardant：

V-0

UV Grade：

Surface shows no apparent changes（GB/T 16422.3-2014 ）

IK Grade：

IK10

Neutral Salt Spray：

48H

Anti-High And Low Temperature：

-40°C~+55°C / -40°F~+131°F

Product Certification ：

CE、FCC

Parameter

Serial Number:	Voltage	Power	LED Color	Control Method	Pixel/set	Beam angle
01	DC12V	1.5W	W	ON/OFF	/	170*120°
02	DC12V	4.5W	RGB	DMX512	1	170*120°

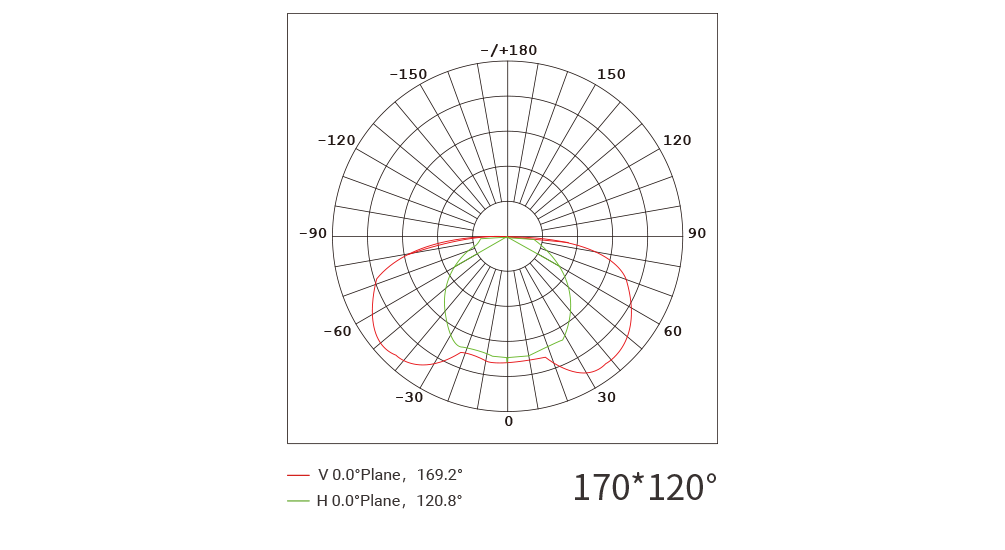

Luminosity Distribution

YD-DM90W(YB) Square Frameless Underground Light

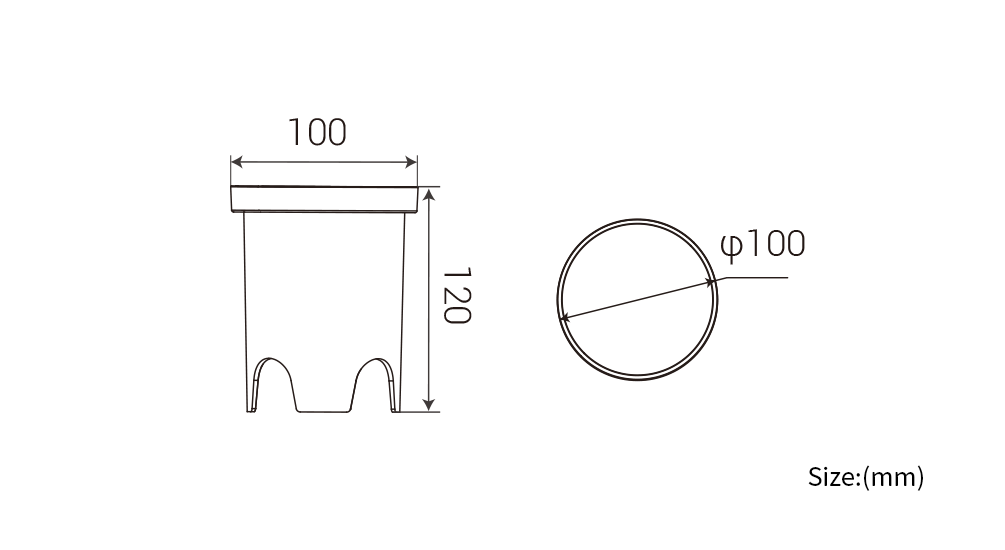

Product Size

YD-DM90W(YB) Square Frameless Underground Light

Related Products

YD-DMY-90-B LED Underground Light

YD-DMY-90-B LED Underground Light

power:1.5W、4.5W

YD-DMY-120-B LED Underground Light

YD-DMY-120-B LED Underground Light

YD-DMY-160-B LED Underground Light

YD-DMY-160-B LED Underground Light

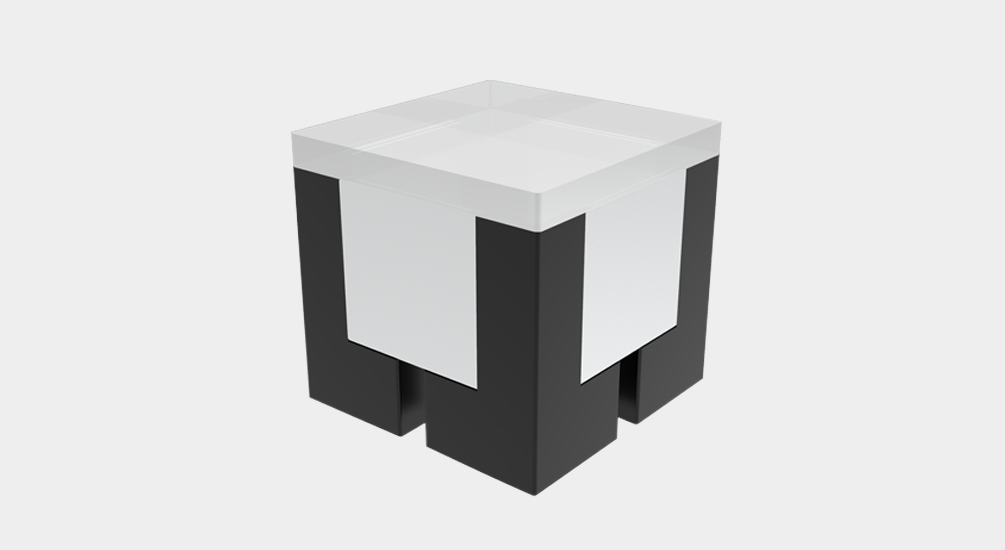

YD-DM120W(YB) Square Frameless Underground Light

YD-DM120W(YB) Square Frameless Underground Light

power:3W、5W、9W
