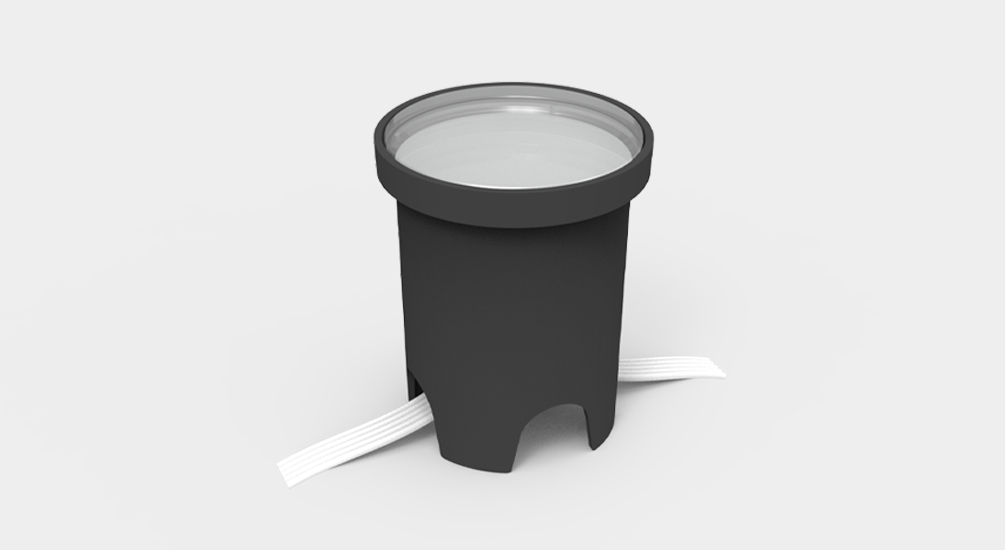

YD-DM100W(YA) Round Narrow-edge Underground Light
Main Performance:The integrated molding technology is used to avoid condensation of water droplets inside the lamp. The light-emitting surface is evenly lit, and there is no glare when watching from a close distance. It supports full-color dynamic control and interactive control. The protection level reaches the highest level IP68, and the impact resistance reaches IK10. The product service life can reach 5-10 years, which is far superior to similar products on the market.
Application Scene:Ideal for outdoor ground lighting and smart lighting in locations such as squares, parks, lawns, and pedestrian streets.
Characteristic:
Product Consultation
Home >Product Center > Round Narrow-Edge Underground Lights > YD-DM100W(YA) Round Narrow-edge Underground Light
Security
Protection Grade:
IP68
Flame Retardant：
V-0
UV Grade：
Surface shows no apparent changes（GB/T 16422.3-2014 ）
IK Grade：
IK10
Neutral Salt Spray：
48H
Anti-High And Low Temperature：
-40°C~+55°C / -40°F~+131°F
Product Certification ：
CE、FCC
Parameter
Serial Number: Voltage Power LED Color Control Method Pixel/set Beam angle
01 DC24V 1W W ON/OFF / 110°
02 DC24V 3W RGB DMX512 1 110°
Luminosity Distribution
YD-DM100W(YA) Round Narrow-edge Underground Light

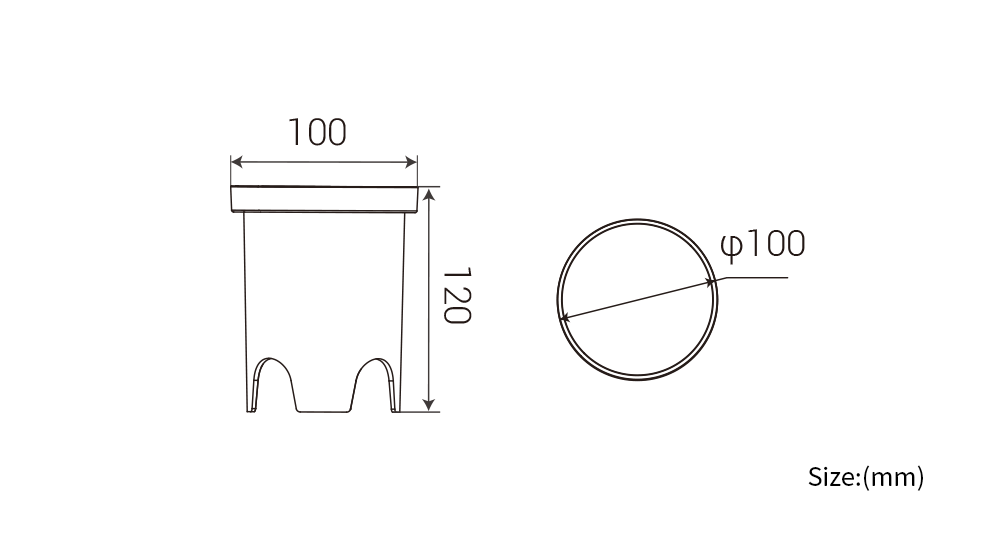

Product Size
YD-DM100W(YA) Round Narrow-edge Underground Light
Related Products
YD-DMY-100 Round Narrow-Edge Underground Light
YD-DMY-100 Round Narrow-Edge Underground Light
power:1W、3W
