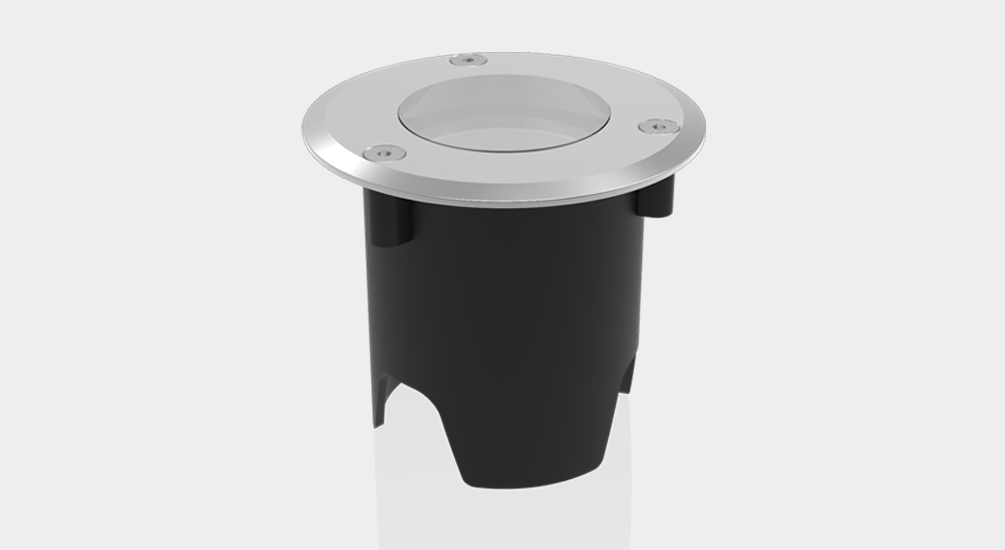

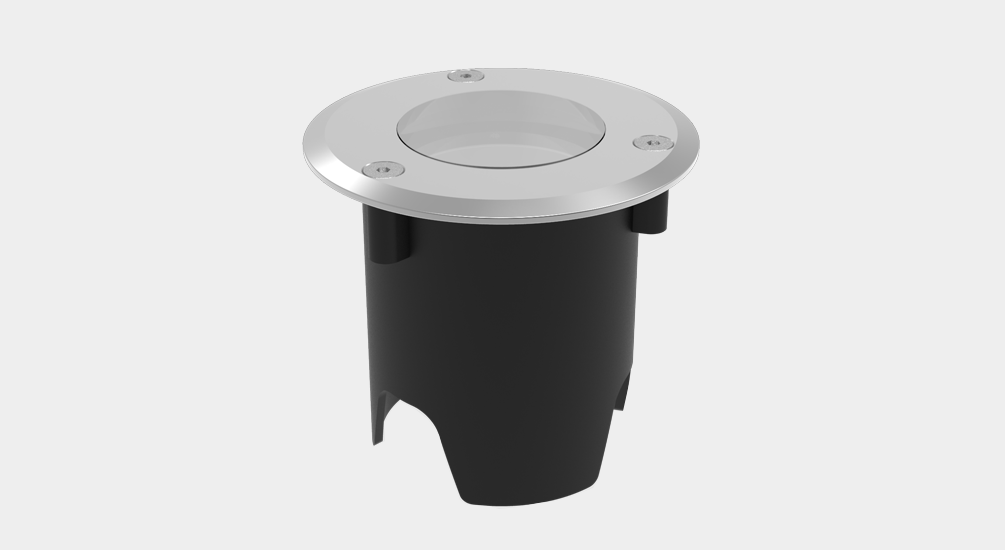

YD-DM90W(YA) Round Wide-edge Underground Light
Main Performance:The fixture is made of Macromolecule alloy material and stainless steel, with an integrated light source housing design. Provides uniform and soft lighting with excellent waterproof performance. Achieves the highest protection level of IP68 and impact resistance level of IK10.
Application Scene:Suitable for embedded lighting and intelligent lighting in outdoor spaces such as plazas, parks, lawns, and pedestrian streets.
Characteristic:
Product Consultation
Home >Product Center > Round Wide-Edge Underground Lights > YD-DM90W(YA) Round Wide-edge Underground Light
Security
Protection Grade:
IP68
Flame Retardant：
V-0
UV Grade：
Surface shows no apparent changes（GB/T 16422.3-2014 ）
IK Grade：
IK10
Neutral Salt Spray：
48H
Anti-High And Low Temperature：
-40°C~+55°C / -40°F~+131°F
Product Certification ：
CE、FCC
Parameter
Serial Number: Voltage Power LED Color Control Method Pixel/set Beam angle
01 DC12V 0.8W W ON/OFF / 110°
02 DC12V 1W W ON/OFF / 110°
03 DC12V 1.5W RGB DMX512 1 110°
Luminosity Distribution
YD-DM90W(YA) Round Wide-edge Underground Light

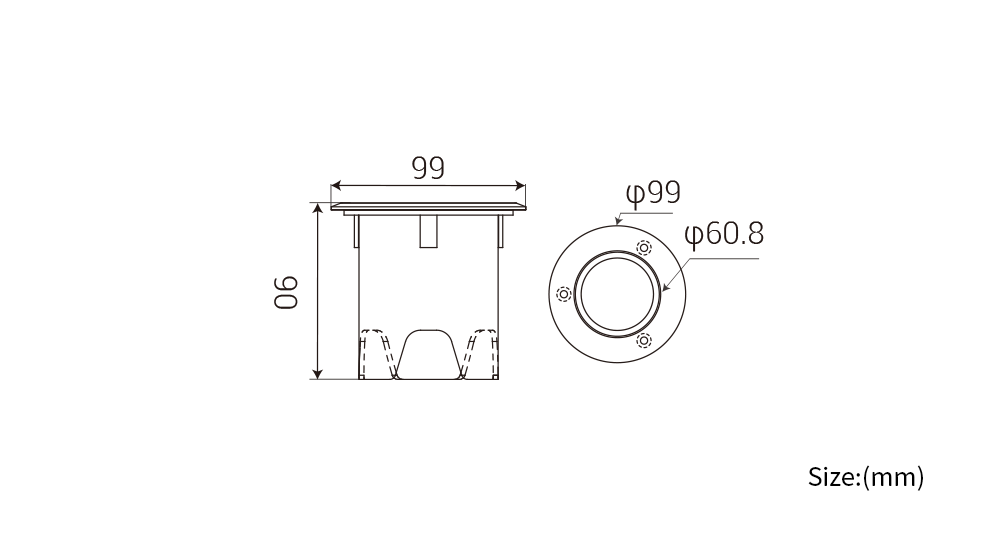

Product Size
YD-DM90W(YA) Round Wide-edge Underground Light
