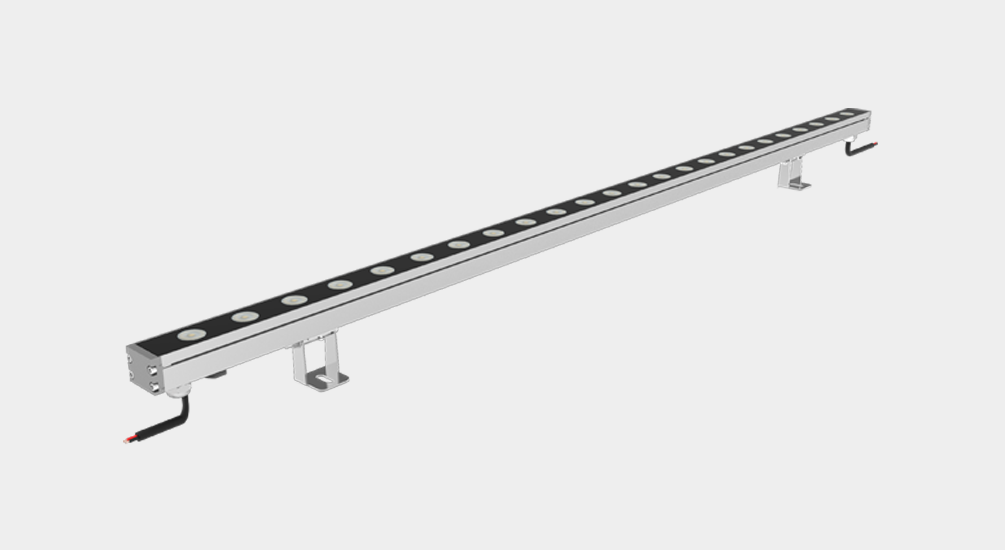

OUGE-XQ36W(XA) LED Wall Washer Light-Hangzhou YD Illumination Co., Ltd

Main Performance:Structural waterproofing process with high waterproofing rating and long-lasting durability. The long strip structure provides excellent heat dissipation, ensuring component stability and extending lifespan. Select high-efficiency leds with ultra-white tempered glass, energy-saving and rich in color, with optional anti-glare accessories for different scenarios.The fasteners are a rotating structure with adjustable angles for easy installation.Supports multiple control modes, suitable for a wide range of occasions.

Application Scene:It is suitable for commercial lighting, subway, elevated overpass, exterior walls of buildings, panoramic floodlighting of building landmarks, landscape building structures, outdoor squares, etc.

Characteristic:

Product Consultation

Home >Product Center > OUGE LED Wall Washer Light Series > OUGE-XQ36W(XA) LED Wall Washer Light

Security

Protection Grade:

IP68

Flame Retardant：

V-0

UV Grade：

Surface shows no apparent changes（GB/T 16422.3-2014 ）

IK Grade：

IK10

Neutral Salt Spray：

48H

Anti-High And Low Temperature：

-40°C~+55°C / -40°F~+131°F

Product Certification ：

CE、FCC

Parameter

Serial Number:	Voltage	Power	LED Color	Control Method	Beam Angle
01	DC24V	18W	W	ON/OFF	20°、30°、40°、60°、20*40
02	DC24V	24W	W	ON/OFF	20°、30°、40°、60°、20*40
03	DC24V	36W	W	ON/OFF	20°、30°、40°、60°、20*40
04	DC48V	18W	W	ON/OFF	20°、30°、40°、60°、20*40
05	DC48V	24W	W	ON/OFF	20°、30°、40°、60°、20*40
06	DC48V	36W	W	ON/OFF	20°、30°、40°、60°、20*40
07	DC24V	18W	W	DMX512	20°、30°、40°、60°、20*40
08	DC24V	24W	W	DMX512	20°、30°、40°、60°、20*40
09	DC48V	18W	W	DMX512	20°、30°、40°、60°、20*40
10	DC48V	24W	W	DMX512	20°、30°、40°、60°、20*40

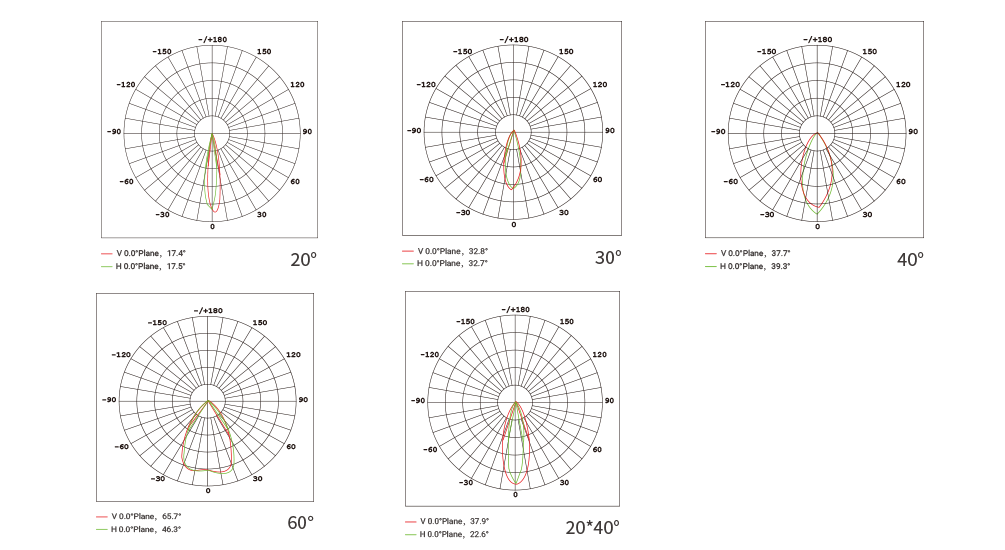

Luminosity Distribution

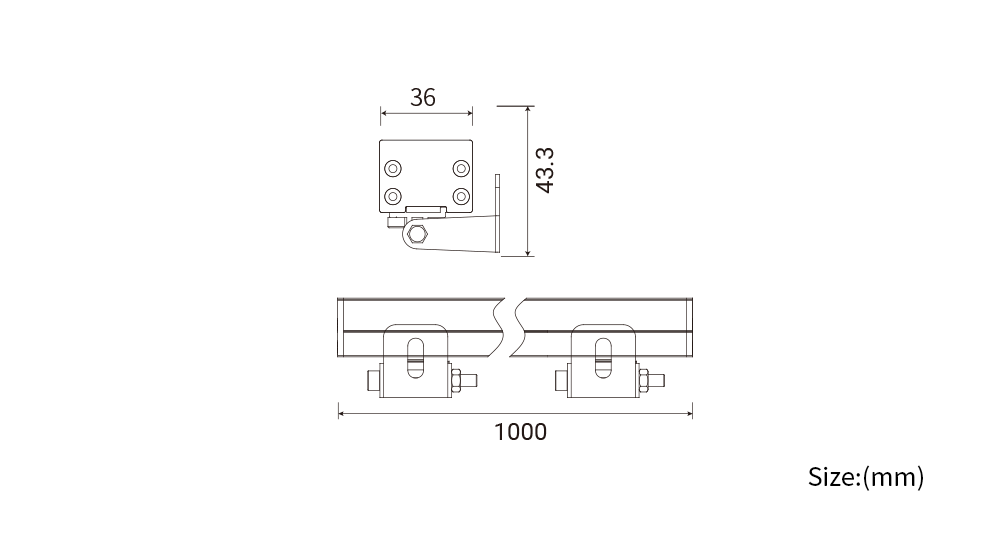

Product Size
