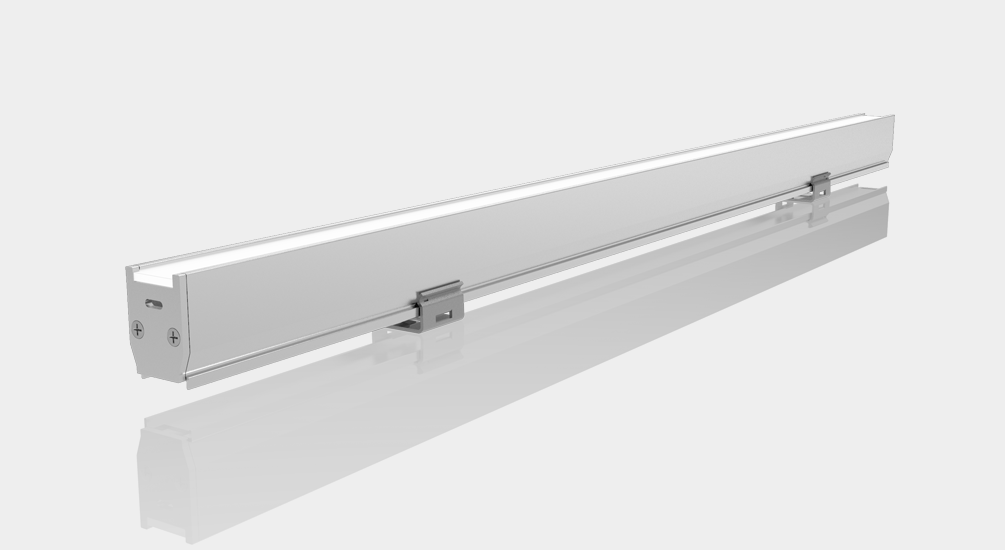

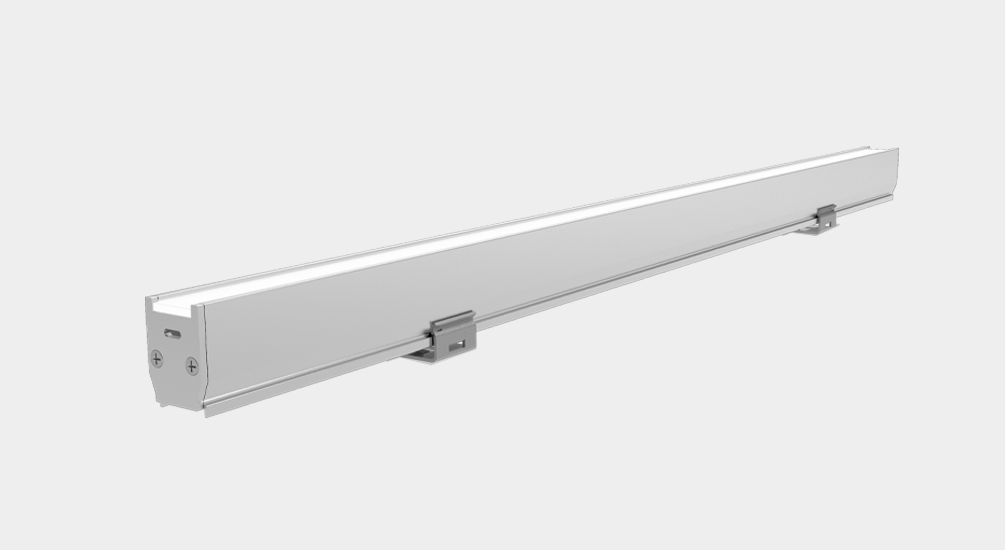

YD-XT17W(YB1) LED Linear Light

Product Model:YD-XT17W(YB1)

Description:Main Performance It adopts uniform light anti-glare design. It adopts Macromoledule polymer alloy materials and double protection technology with independent intellectual property rights. The protection level of the lamp reaches the highest IP68, the flame retardant level V-0, the anti-UV and anti-aging performance reaches the requirements of stable and long time use in outdoor. It has conventional, DC48V，RDM and constant power different series to meet the multiple requirements of outdoor lighting.

Characteristic:

Product Consultation

Home >Product Center > Uniform Linear Lights > YD-XT17W(YB1) LED Linear Light

Security

Protection Grade:

IP68

Flame Retardant：

V-0

UV Grade：

Surface shows no apparent changes（GB/T 16422.3-2014 ）

Neutral Salt Spray：

48H

Anti-High And Low Temperature：

-40°C~+55°C / -40°F~+131°F

Product Certification:

CE、FCC

Configuration

Serial Number:	Voltage	Power	LED Color	Control Method	Pixel/m	Beam angle
01	DC24V	12W	R/G/B/W...	ON/OFF	/	110°
02	DC24V	12W	R/G/B/W...	DMX512	8	110°
03	DC24V	12W	RGB	SPI	8	110°
04	DC24V	15W	RGB+W	SPI	8	110°
05	DC24V	12W	RGB	DMX512	8	110°
06	DC24V	15W	RGB+W	DMX512	8	110°

Luminosity Distribution

YD-XT17W(YB1) LED Linear Light

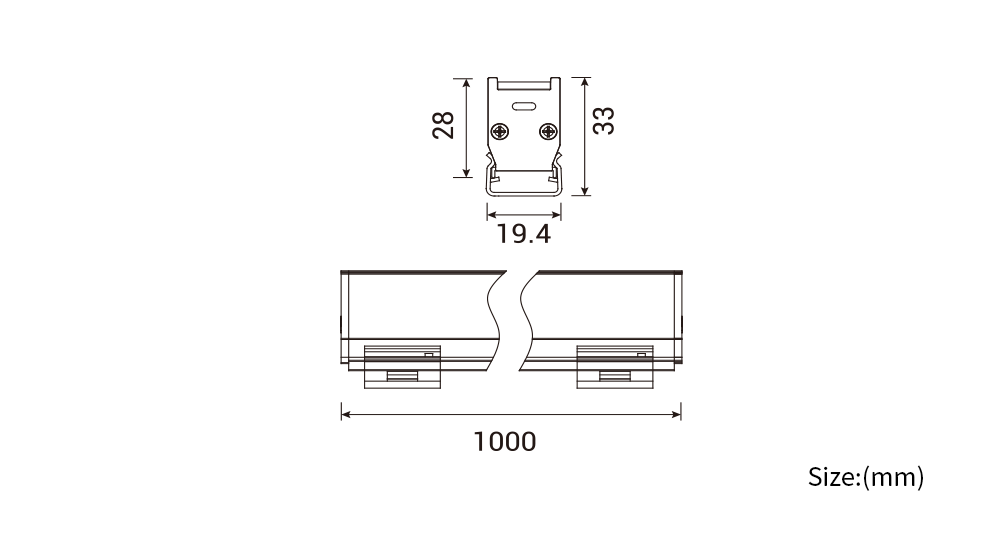

Product Size

YD-XT17W(YB1) LED Linear Light
