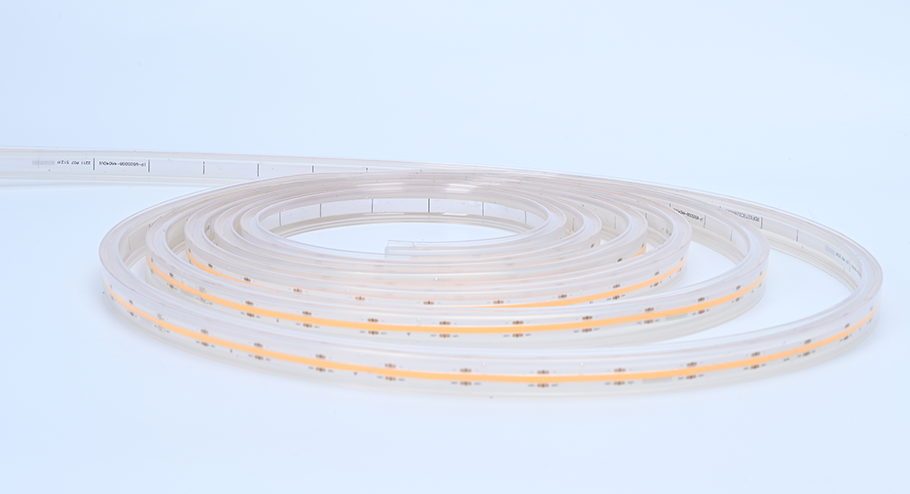

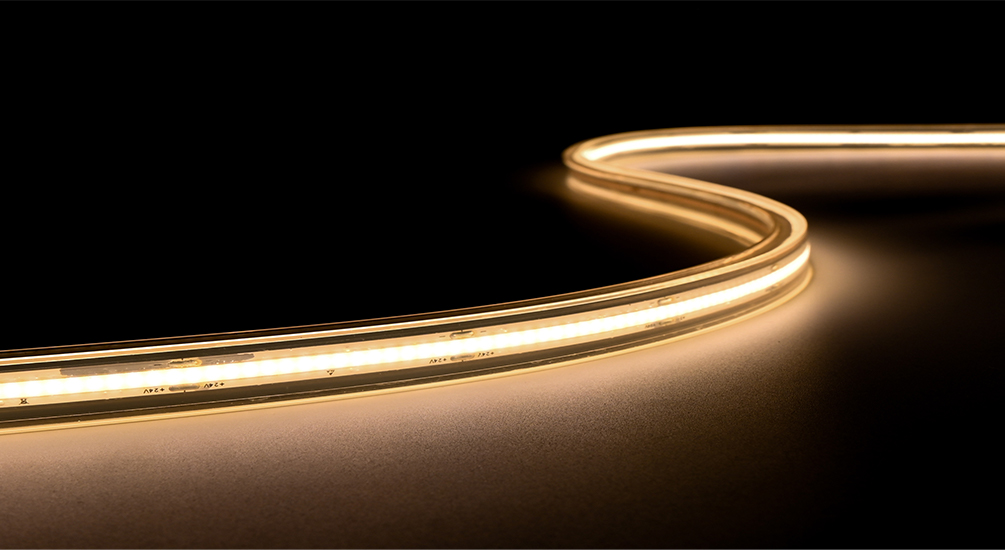

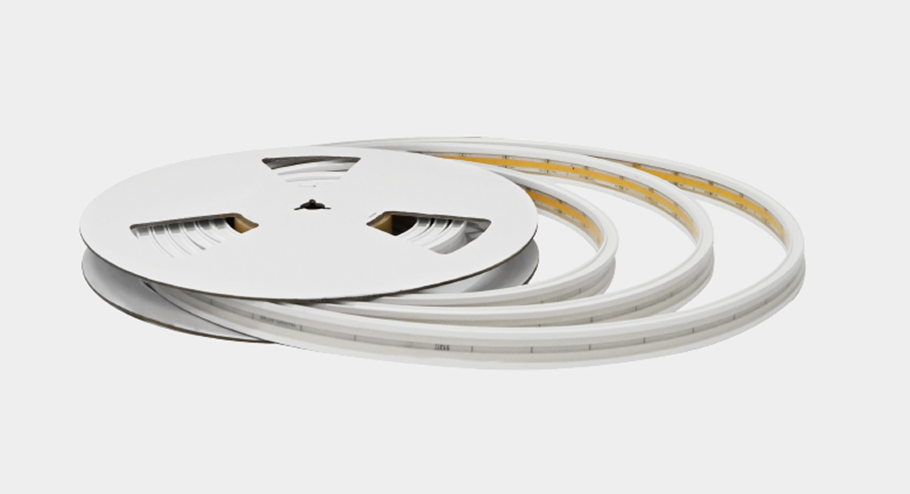

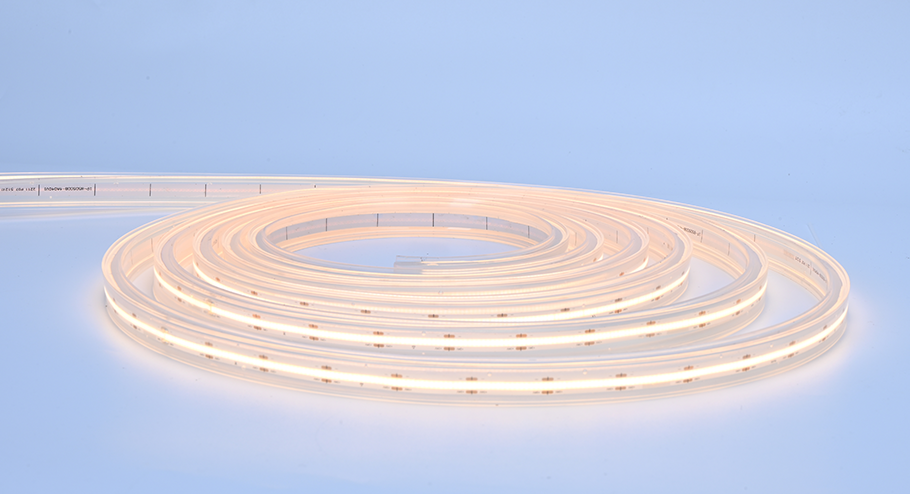

YD-RXTY-16B COB uniform flexible led strip light

Product Model:YD-RXTY-16B

Description:Main Performance:Supports wide range of brightness adjustment, can replace linear lights, wall washers and indoor main lighting. With Chip Flip Technology, uniform light emitting without glare. The lamp body is flexible and can be bent and shaped at will, making it easy to install. It can achieve stepless dimming, full color change and other effects.
Application Scene:It is suitable for long-term use in various harsh environments such as indoor, outdoor, underground, and underwater (seawater) in buildings, hotels, riverbanks, and park scenic spots.

Characteristic:

Product Consultation

Home >Product Center > COB uniform flexible led strip light > YD-RXTY-16B COB uniform flexible led strip light

Security

Protection Grade：

IP68

Flame Retardant Grade：

V-0

UV Grade：

Surface shows no apparent changes （GB/T 16422.3-2014 ）

IK Grade：

IK10

Neutral Salt Spray：

48H

Anti-High And Low Temperature：

-40°C~+55°C / -40°F~+131°F

Product Certification ：

CE、FCC、BIS

Configuration

Serial Number:	Voltage	Power	LED Color	Control Method	Pixel/m	Beam Angle
01	DC24V	12W/m	W	ON/OFF	/	110°
02	DC24V	10W/m	W	ON/OFF	/	110°

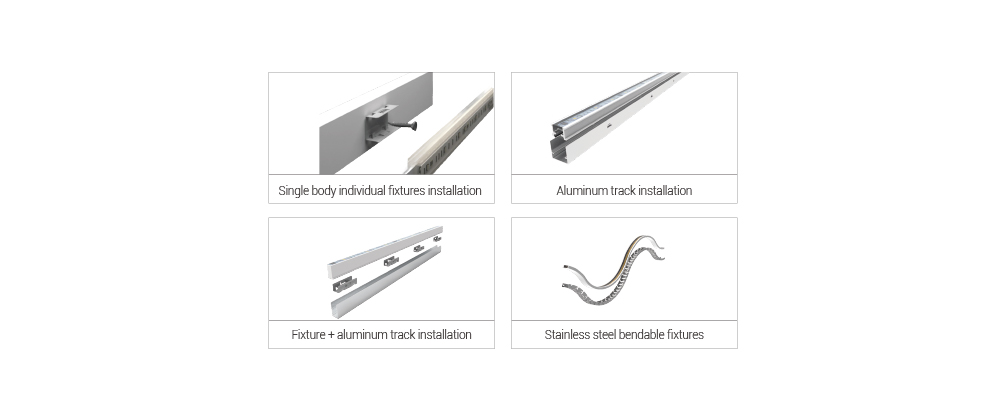

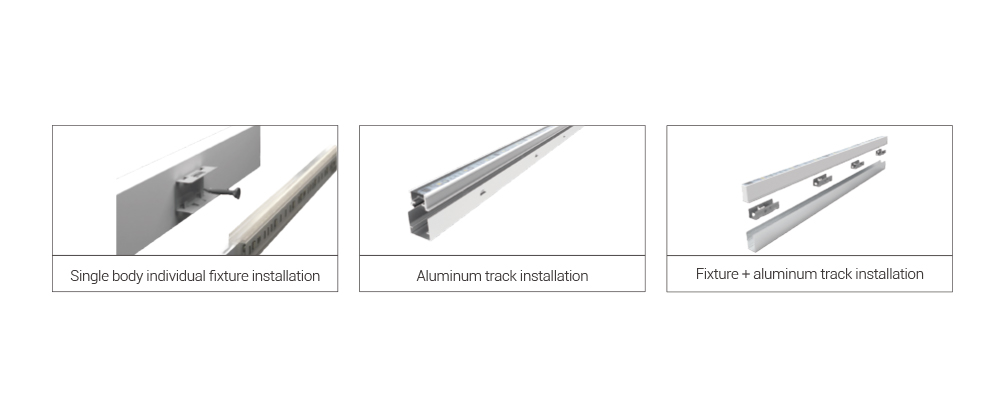

Installation

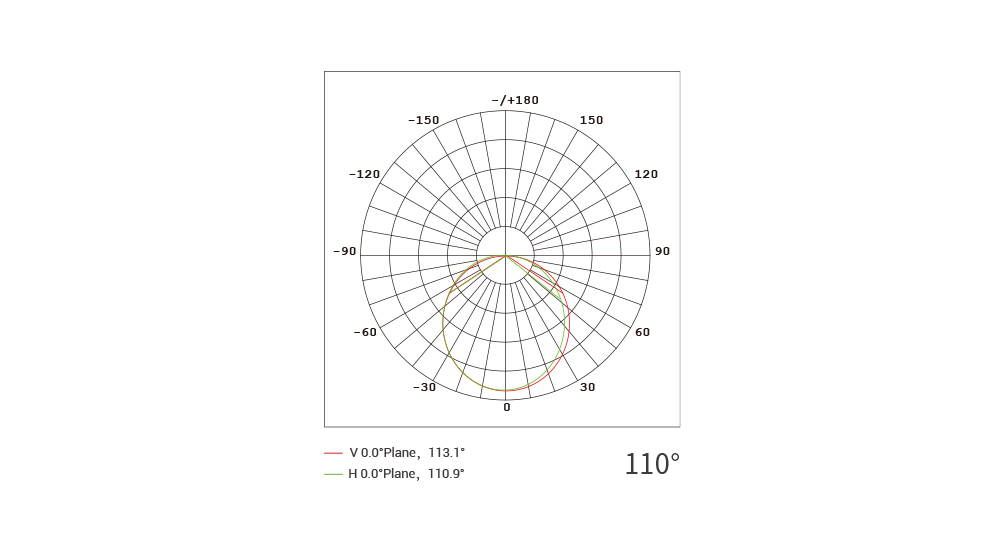

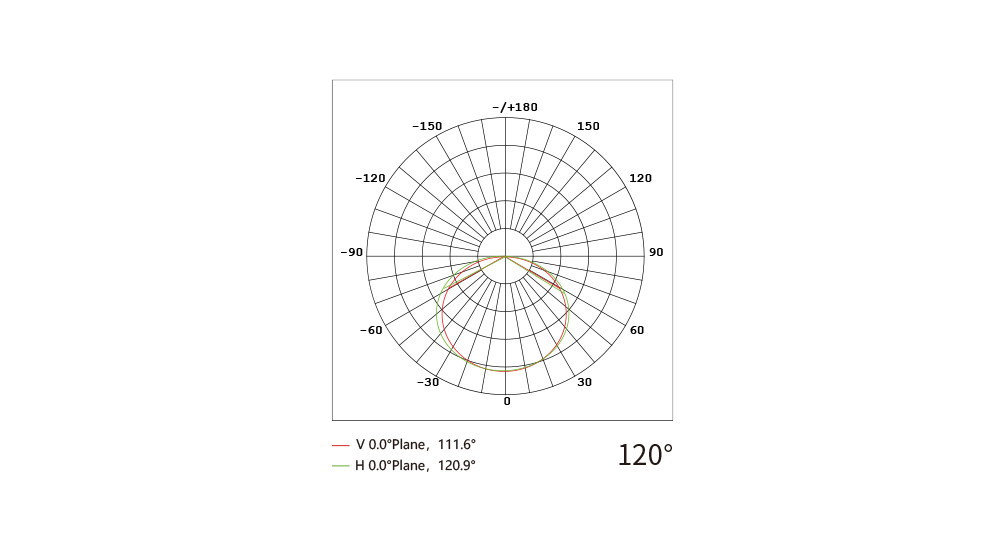

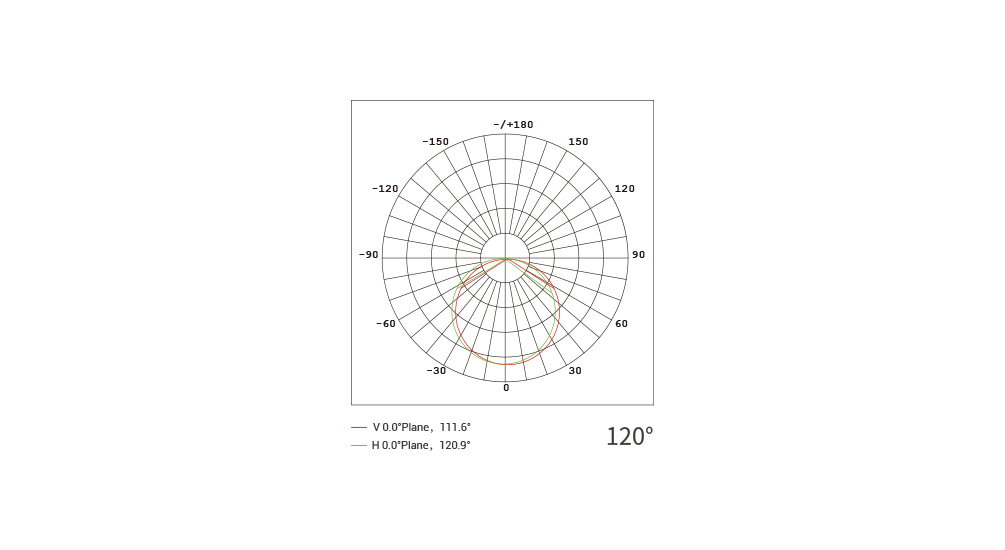

Luminosity Distribution

YD-RXTY-16B COB uniform flexible led strip light

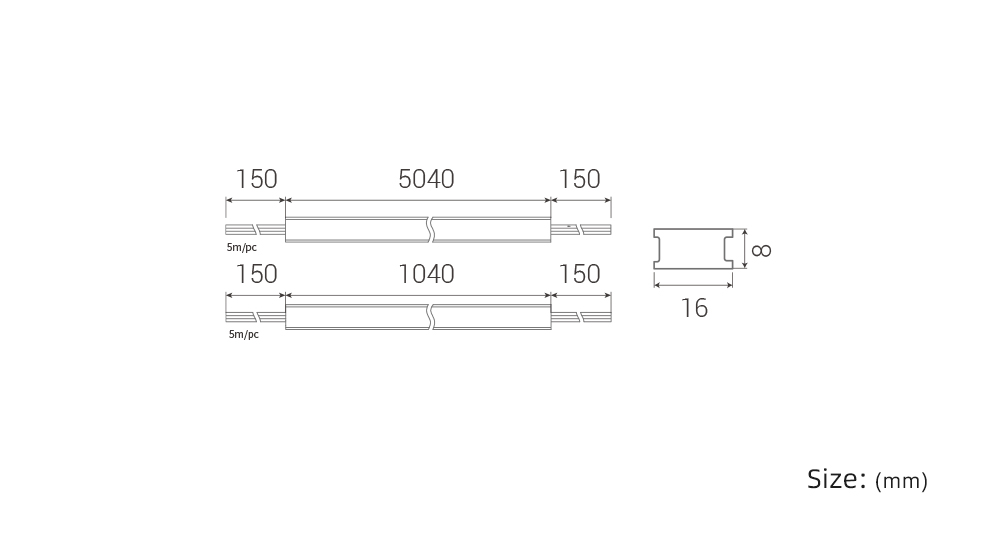

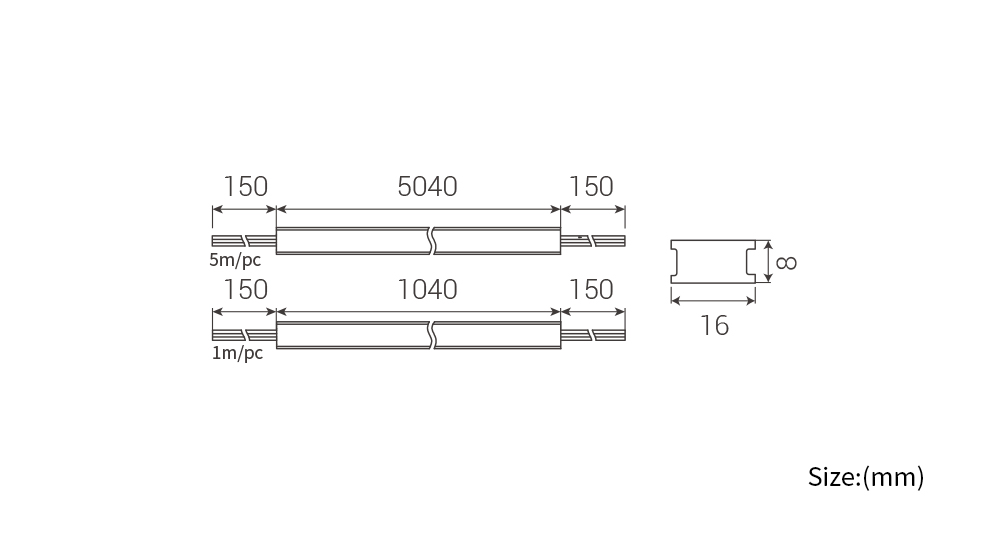

Product Size

YD-RXTY-16B COB uniform flexible led strip light

Project Application

Xinhai Semiconductor, Hangzhou

Zhongjia Dexi Shangzuo- Hangzhou
