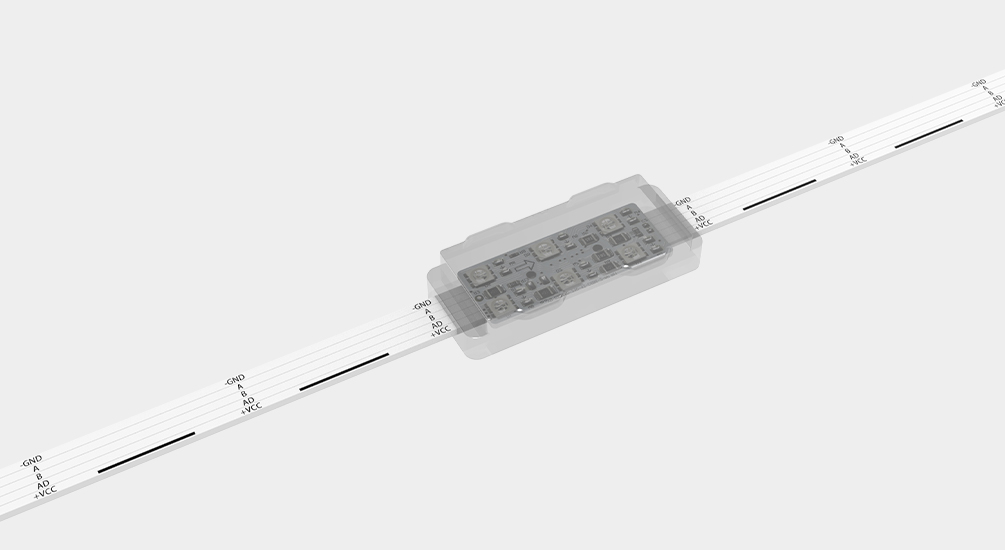

YD-DGY-23X60 Square LED Point Lights
Product Model:YD-DGY-23X60
Description:Main Performance：Utilizes fully independent intellectual property rights with modified macromolecule alloy material and double protection technology. Boasts a high protection rating of IP68,flame retardancy rating of V-0,and features UV resistance and aging resistance capabilities.Transparent and ultra-thin design suitable for both indoor and outdoor use.It has conventional, DC48V, RDM and constant power different series to meet the multiple requirements of outdoor lighting.
Application Scene:Used for large-scale projects such as viewing and landscape lighting for overpasses, rivers, and riverbanks.Suitable for outdoor, underground, and underwater (seawater) landscape lighting applications.
Characteristic:
Product Consultation
Home >Product Center > Square LED Point Lights > YD-DGY-23X60 Square LED Point Lights
Security
Protection Grade：
IP68
Flame Retardant Grade：
V-0
UV Grade：
Surface shows no apparent changes（GB/T 16422.3-2014 ）
IK Grade：
IK10
Neutral Salt Spray：
48H
Anti-High And Low Temperature：
-40°C~+55°C / -40°F~+131°F
Product Certification:
CE、FCC、CQC
Configuration
Serial Number: Voltage Power LED Color Control Method Normal Center Distance Beam Angle
01 DC24V 1W W+W DMX512 19cm 110°
02 DC24V 1.5W RGB DMX512 19cm 110°
03 DC12V 1W RGB+W DMX512 19cm 110°
04 DC15V 1.2W RGB+W DMX512 19cm 110°
05 DC24V 2W RGB+W DMX512 19cm 110°
06 DC15V 1.2W RGB+W DMX512 19cm 110°

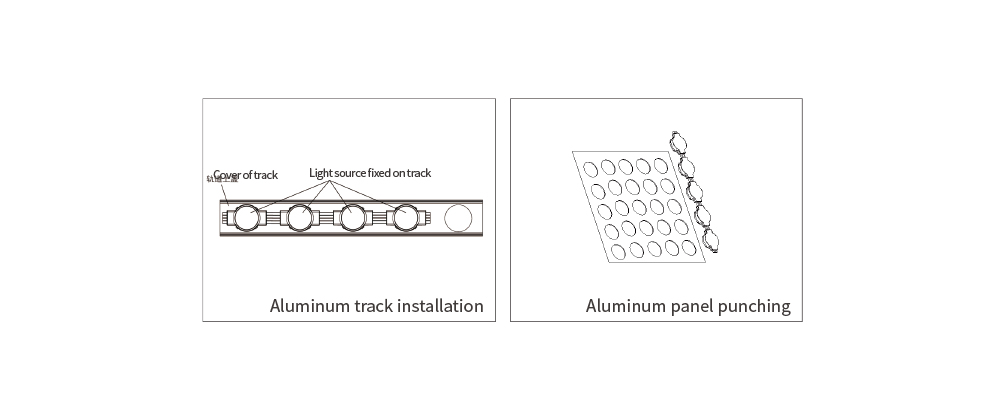

Installation

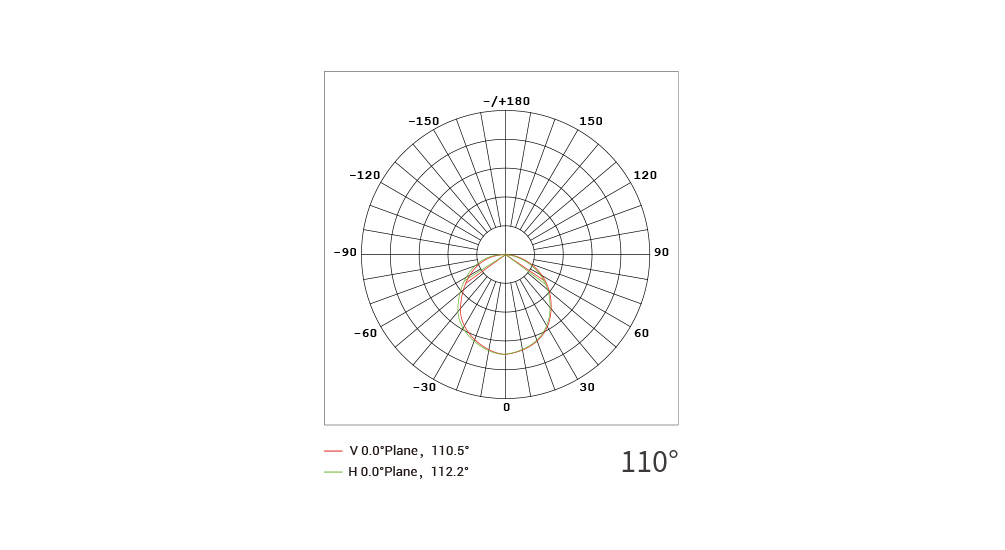

Luminosity Distribution
YD-DGY-23X60 Square LED Point Lights

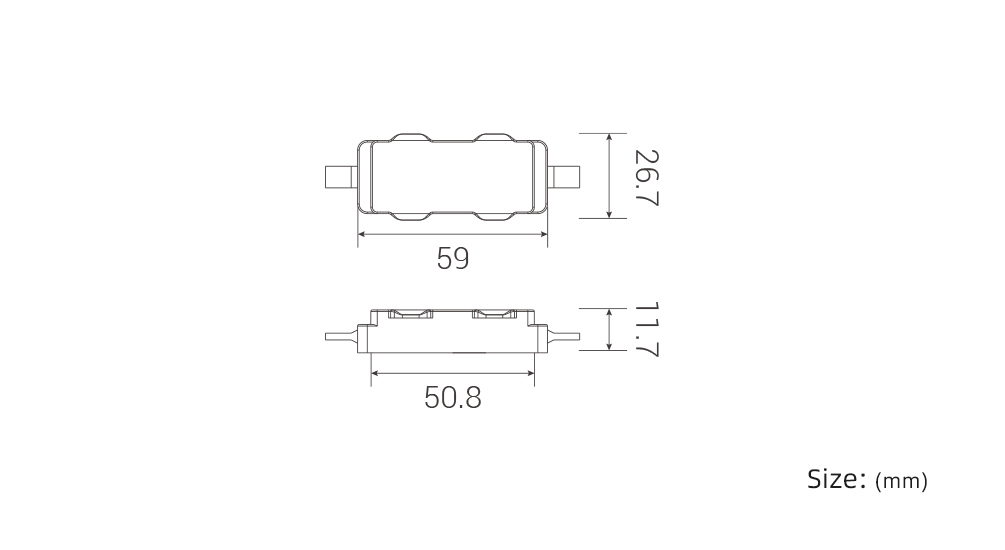

Product Size
YD-DGY-23X60 Square LED Point Lights
Project Application
Baoland Square, Fuzhou
Learn more
Water Sports Center, Hangzhou
Learn more
Jiangcun Business District, Hangzhou
Learn more
