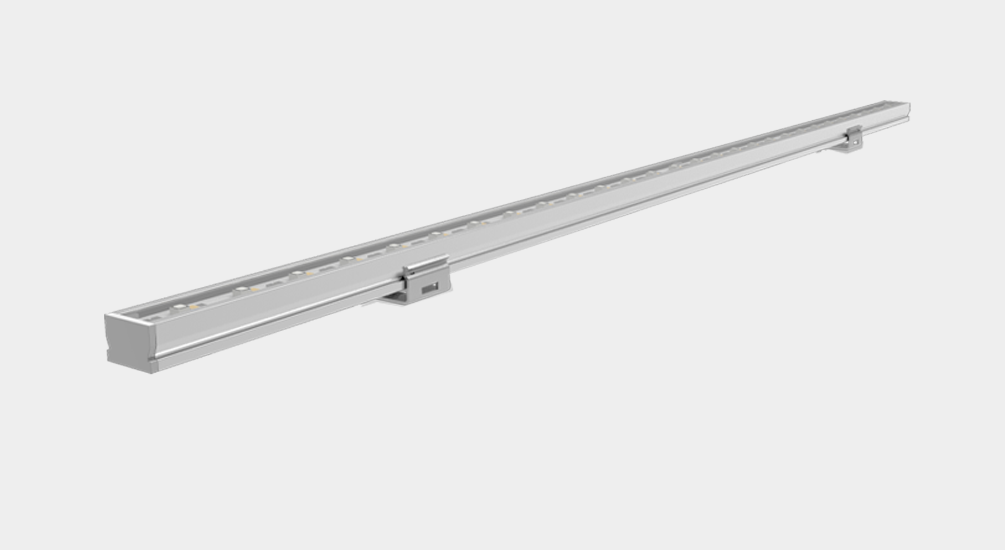

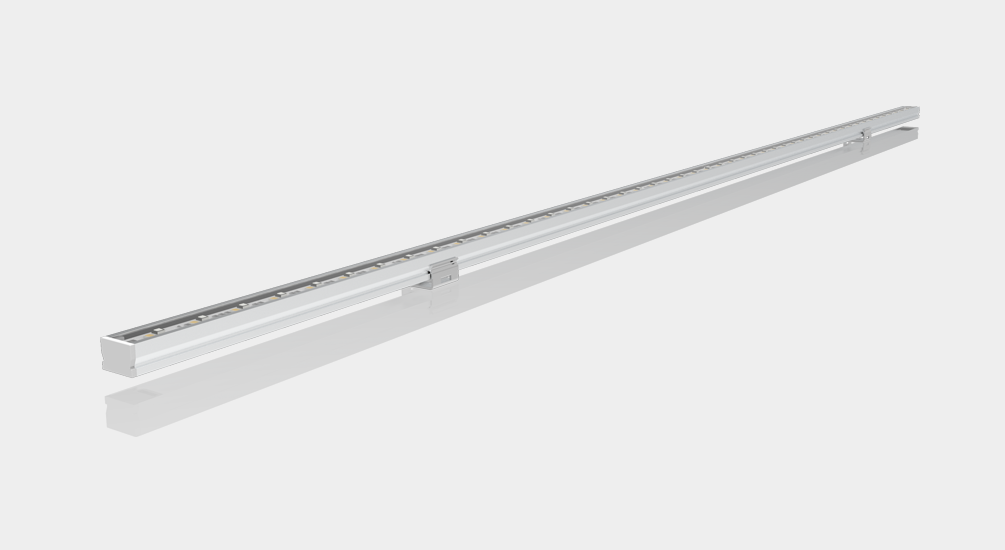

YD-XT-15C LED Linear Light

Product Model:YD-XT-15C

Description:With small and ultra narrow design advantage, the led linear light can be installed in small structure. It’s convenient for customer to snap the led linear light into the fixture when doing installation. With “H” design of the aluminum profile, it becomes small and beautiful lamp with ultra narrow shape. And thus making it convenient to do led lights layout on project site and achieve good daytime effects. The lights can be used as huge led media curtain wall display.

Characteristic:

Product Consultation

Home >Product Center > LED Linear Lights > YD-XT-15C LED Linear Light

Specification

Product Model：

YD-XT-15C

Size：

1007×18×226(mm)

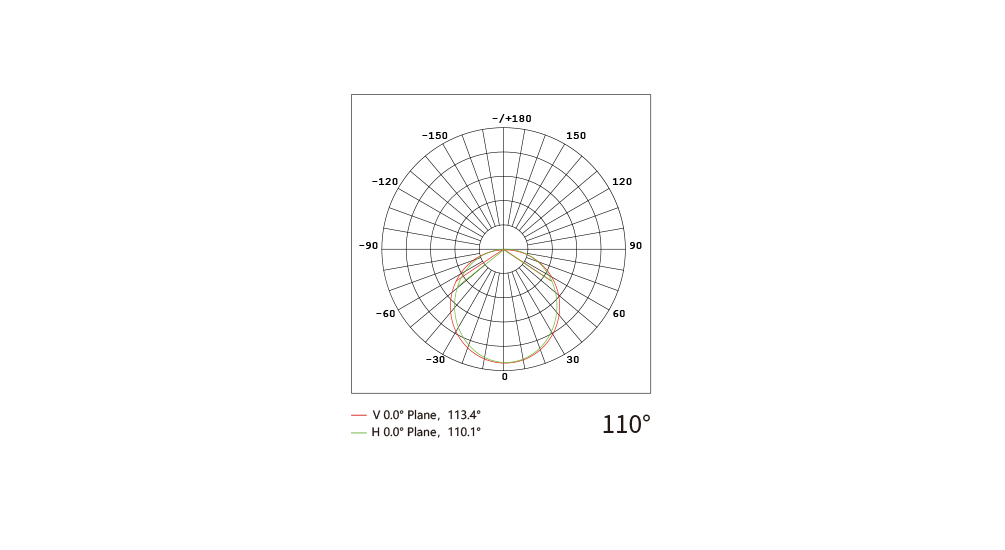

Beam Angle：

110°

Shell Material：

Aluminum Alloy

LED color：

R/G/B/W、RGB、RGB+W

weight：

1789g/set

Electrical

Voltage:

DC24V

Power:

7.5W/12W/15W

Control Method:

ON/OFF、SPI

Security

Protection Grade：

IP68

Flame Retardant：

V-0

Ultraviolet Test：

Anti-UV

Salt Spray Test：

Anti-salt spray

Working Temperature：

-40℃~+55℃

operating environment：

-40℃~+80℃

Configuration

Serial Number:	Serial Number：	Control Method：	Light Color：	Voltage：	Power：	Pixels quantity：	Control IC/m：
01	1	ON/OFF	R/G/B/W…	DC24V	7.5W	96pcs	/
02	2	SPI	RGB	DC24V	12W	48pcs	8
03	3	SPI	RGB+W	DC24V	15W	48+48pcs	8

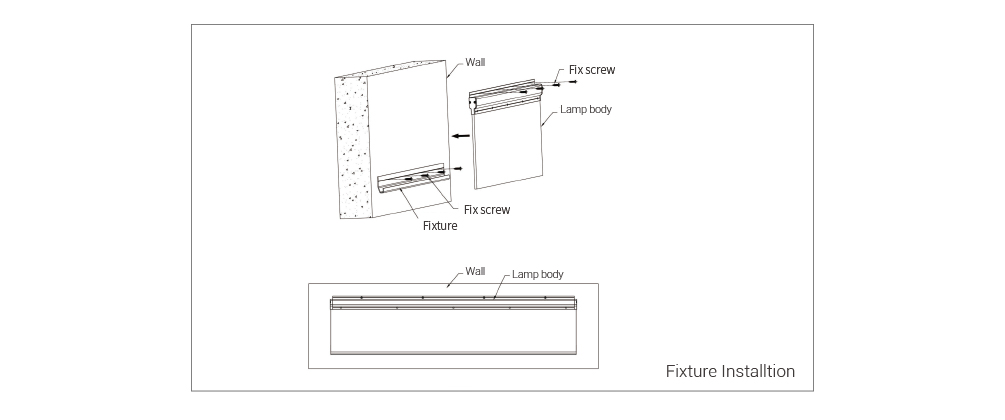

Installation

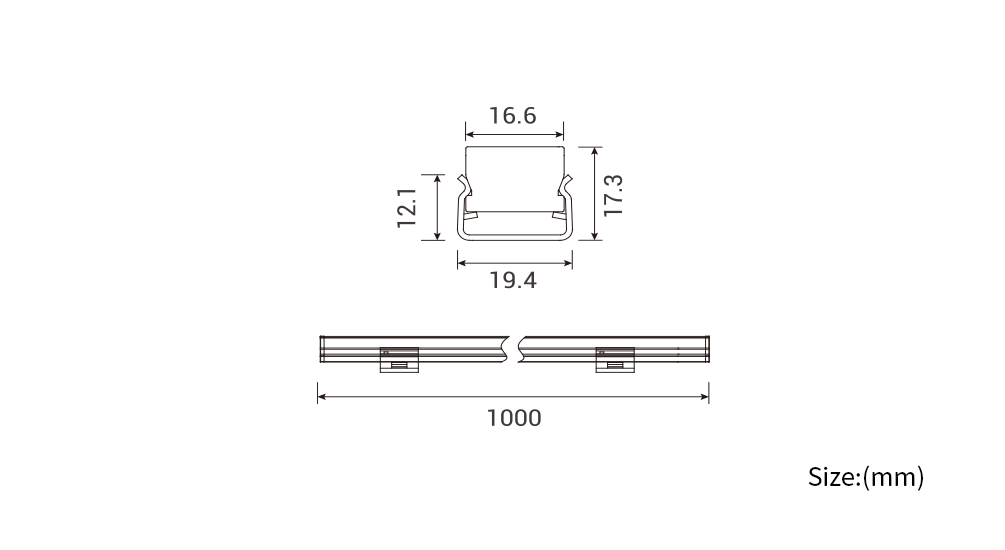

Product Size

YD-XT-15C LED Linear Light

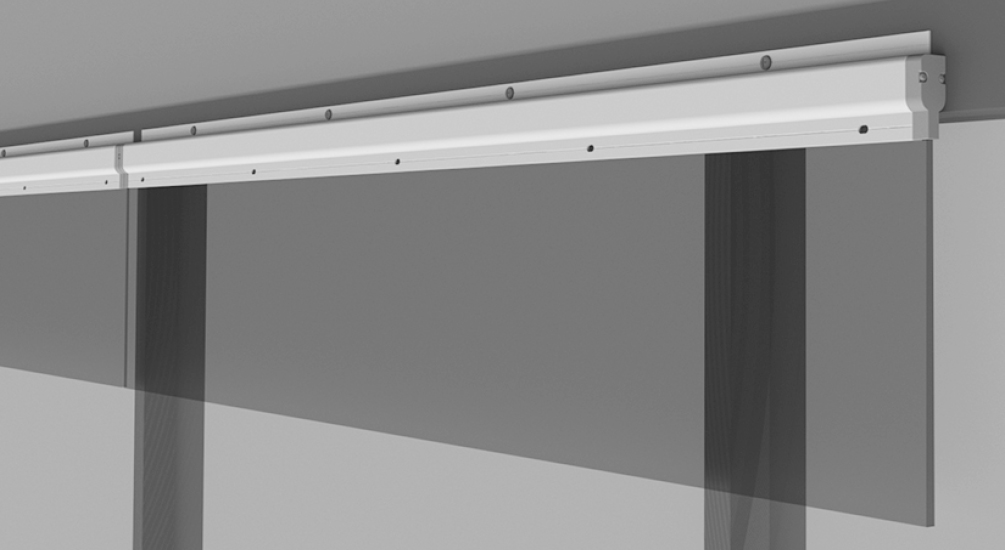

Project Application

South Lake, Tangshan
