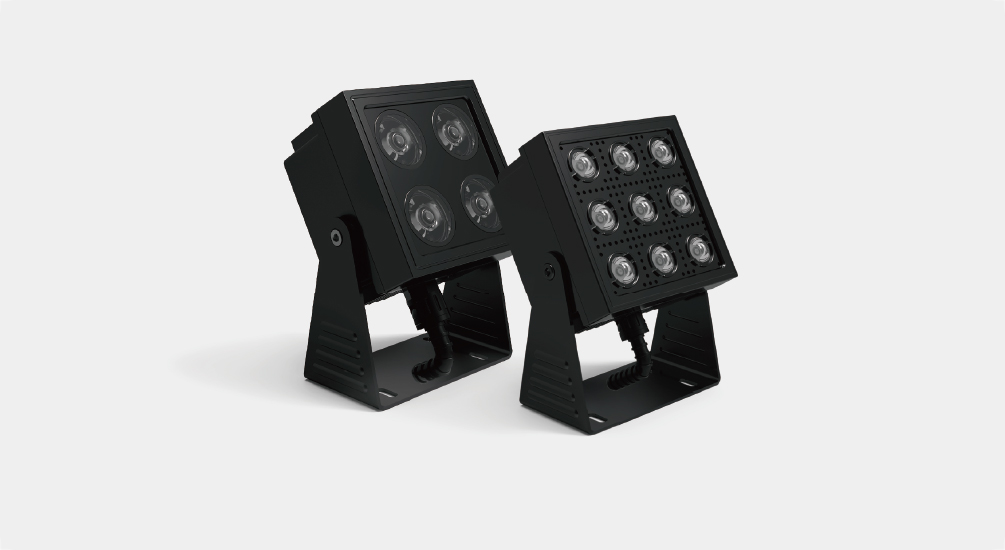

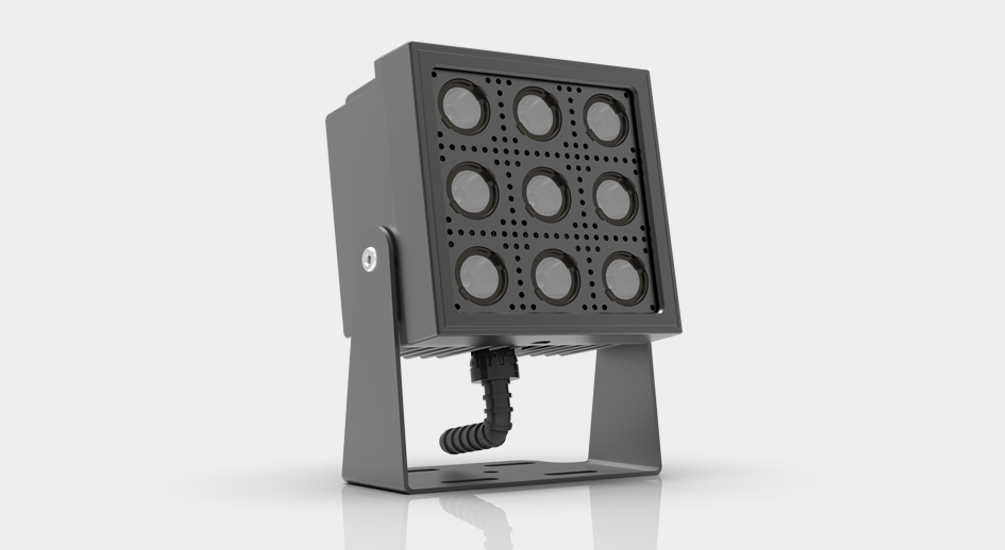

YD-DT-120 Rectangle LED Floodlights

Product Model:YD-DT-120

Description:Main Performance:
This lamp adopts metal die-casting shell and surface spraying technology.
The inner light source module adopted double protection technology and achieves IP68 highest protection grade.
Uniform lighting effects, excellent flooding lighting effects.
Application Scene:
Mainly used for wall floodlighting of outdoor landscape, building advertisements, large buildings, and large bridge guardrails.

Characteristic:

Product Consultation Data Download

Home >Product Center > Rectangle LED Floodlights > YD-DT-120 Rectangle LED Floodlights

Specification

Size：

120×120×59 (mm)

Weight：

786g/set

Shell Material：

Die-cast aluminum

Security

Protection Grade

IP68

Flame Retardant Grade

V-0

UV Grade

Surface shows no apparent changes （GB/T 16422.3-2014 ）

IK Grade

IK10

Neutral Salt Spray

48H

Anti-High And Low Temperature

-40°C~+55°C / -40°F~+131°F

Product Certification

CE、FCC

Configuration

Serial Number:	Voltage	Power	LED Color	Control Method	Beam Angle
01	DC36V	9W	R/G/B/W···	ON/OFF	15°、30°、45°
02	DC24V	9W	R/G/B/W···	ON/OFF	15°、30°、45°
03	DC36V	16W	RGBW	DMX512	25°
04	DC36V	12W	RGB	DMX512	25°

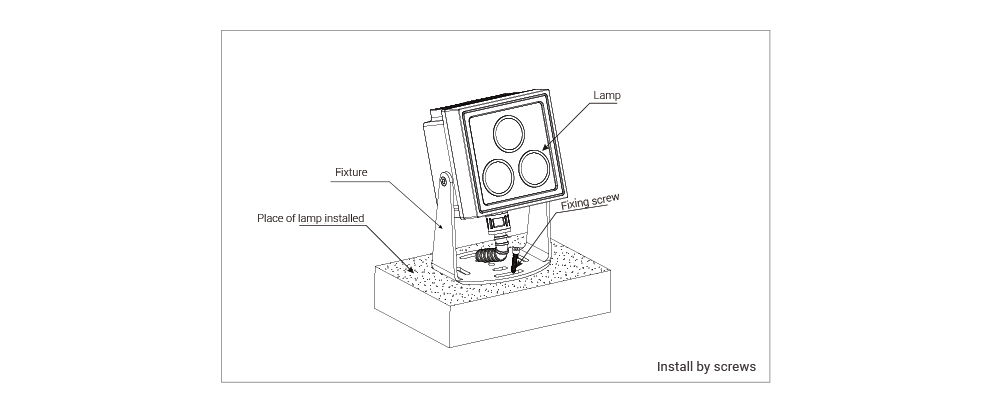

Installation

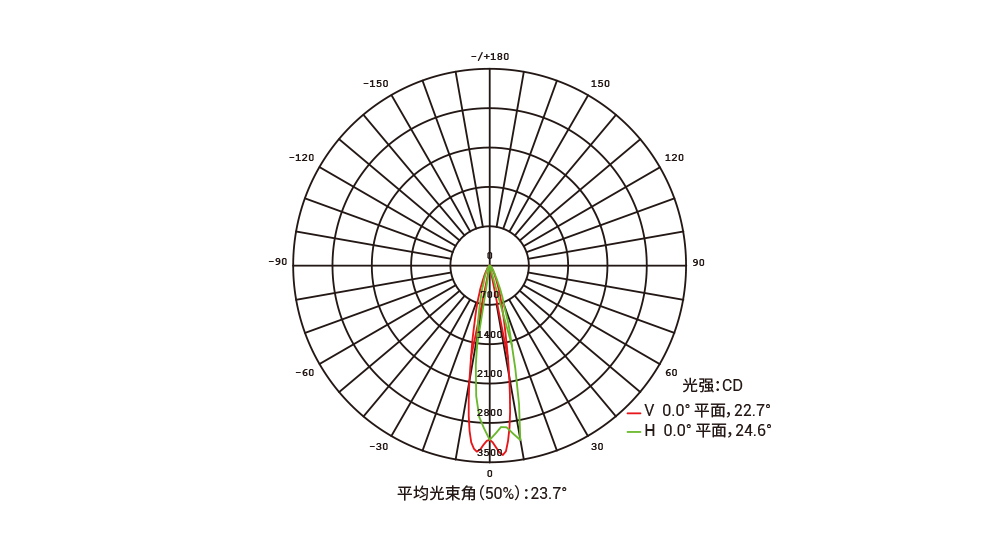

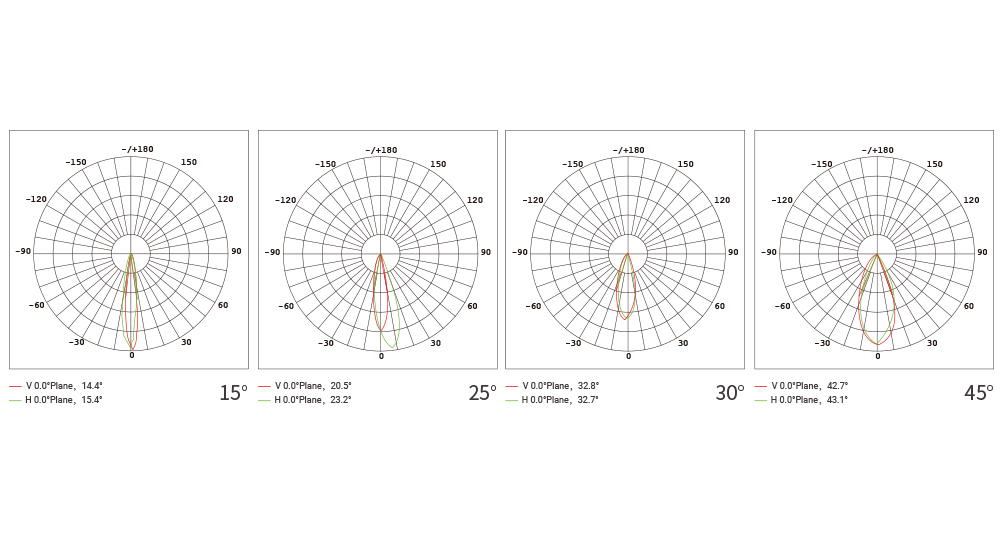

Luminosity Distribution

YD-DT-120 Rectangle LED Floodlights

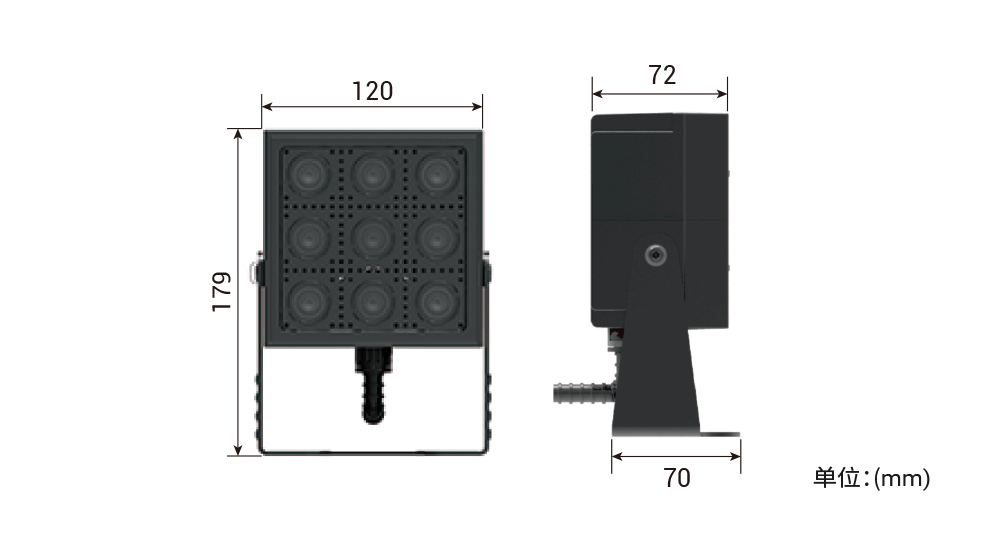

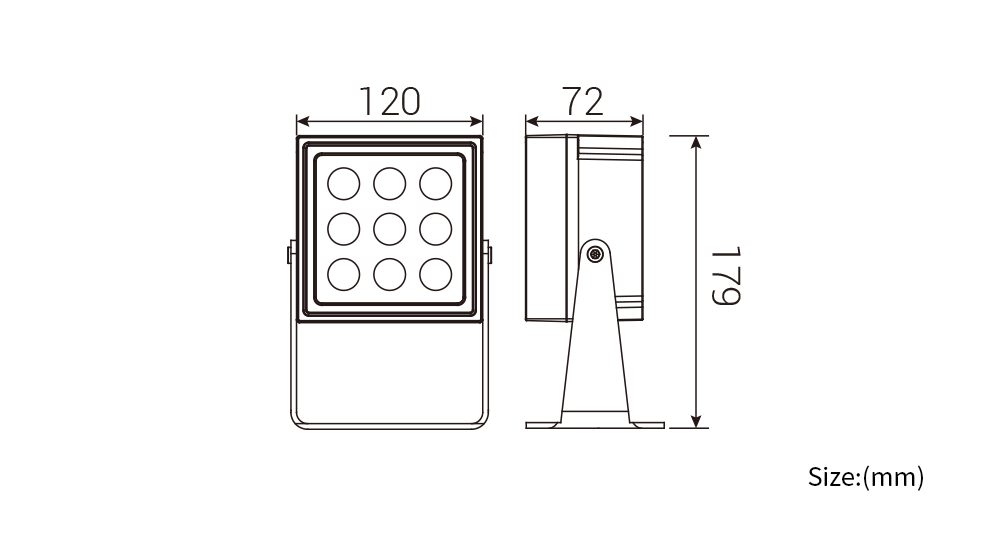

Product Size

YD-DT-120 Rectangle LED Floodlights

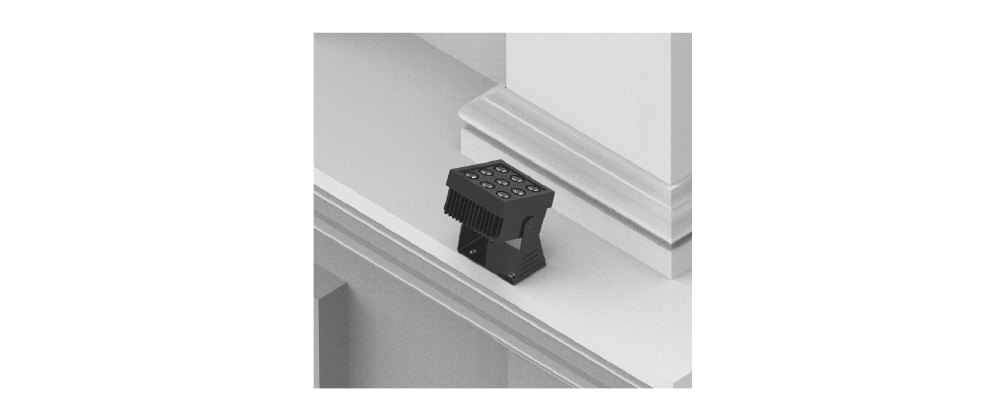

Project Application

Juguo Ancient Town,Rizhao
