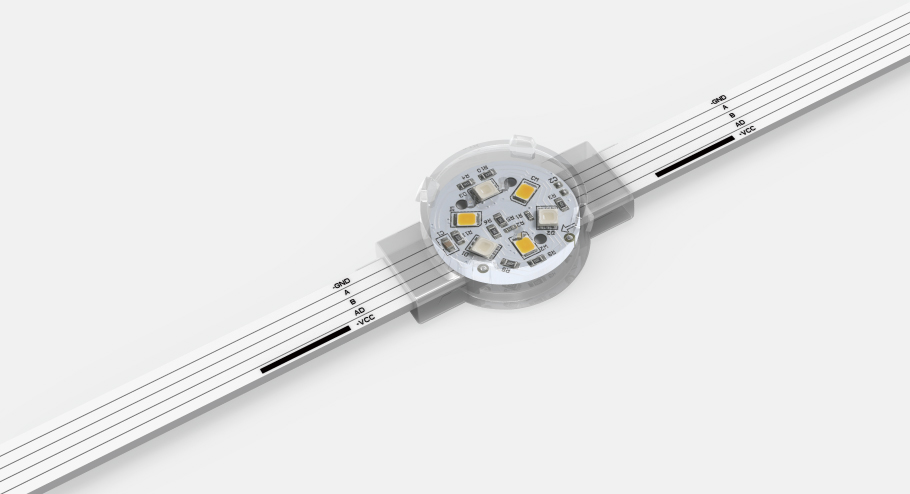

YD Series Φ30 LED Point Light

Product Model:YD-DG-30

Description:This product is small, exquisite in appearance, transparent and ultra-thin and can be used indoors and outdoors. It can also be used under 20 meters underwater and fireproofed. Mainly used to outline the outline of buildings; built-in light sources for outdoor lamps; indoor and outdoor LED advertising displays; also as indoor decorative light sources. It can be used directly in monochrome, or it can be used for RGB offline control with SD card or computer online to transmit images, text, video and other signals in real time.

Characteristic:

Product Consultation Data Download

Home >Product Center > LED Point Light > YD Series Φ30 LED Point Light

Specification

Product Model：

YD-DG-30

Size：

Ф30×14(mm)

Beam Angle：

110°、120°

Weight：

12g/pcs

Electrical

Voltage：

DC12V / DC48V

Power：

0.3W、0.5W、0.8W、1W

Security

Protection Grade：

IP68

Salt Spray Test：

Anti-salt spray

Flame Retardant：

V-0

Electrical Safety Class：

Category III

Configuration

Serial Number:	Control Method：	Light Color：	Voltage：	Power：	Pixels quantity：
01	ON/OFF	R/G/B/W…	DC12V	0.3W	W3
02	DMX512	R/G/B/W…	DC12V	0.5W	W6
03	DMX512	B+W	DC12V	0.5W	B3+W3
04	DMX512	RGB	DC12V	0.8W	RGB3
05	DMX512	RGB+W	DC12V	1W	RGB3+W3
06	DMX512	RGB	DC48V	0.8W	RGB3
07	ON/OFF	R/G/B/W…	DC12V	0.5W	W6
08	DMX512	RGB	DC24V	1W	RGB4
09	DMX512	RGB	DC24V	1.2W	RGB4
10	DMX512	RGB+W	DC12V	1W	RGB3+W1
11	DMX512	RGB+W	DC12V	1.3W	RGB4+W2
12	DMX512	R/G/B/W…	DC12V	0.5W	W6
13	DMX512	B+W	DC12V	0.5W	B3+W3
14	DMX512	RGB+W	DC12V	2W	RGB6+W6
15	DMX512	RGB+W	DC48V	1W	RGB3+W3
16	SPI	RGB	DC48V	0.8W	RGB3
17	SPI	R/G/B/W…	DC12V	0.5W	W6
18	SPI	RGB	DC12V	0.8W	RGB3
19	SPI	RGB	DC24V	1.3W	RGB6
20	SPI	RGB+W	DC24V	1.3W	RGB4+W2
21	SPI	RGB+W	DC12V	1W	RGB3+W1

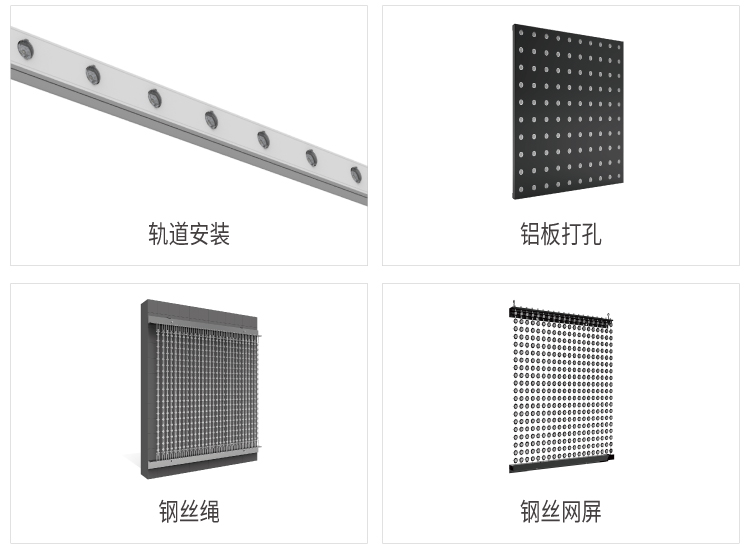

Installation

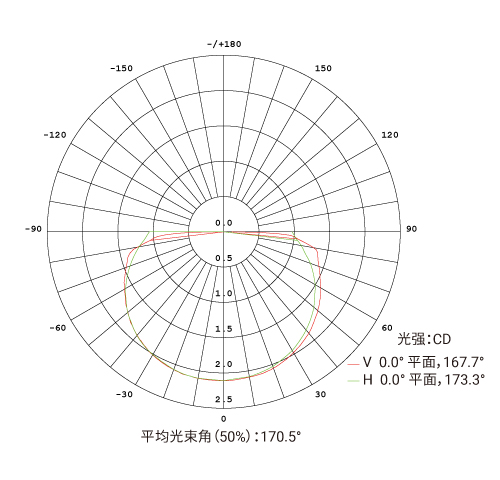

Luminosity Distribution

YD Series Φ30 LED Point Light

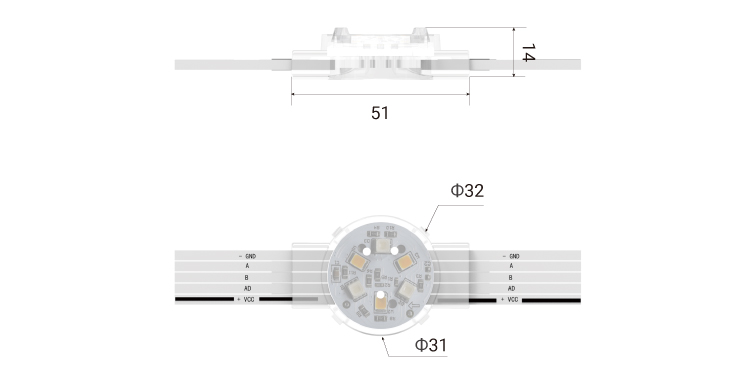

Product Size

YD Series Φ30 LED Point Light

Project Application

Diplomat tower project

Dongcheng Times Square, Huzhou

Boao Hotel, Hainan

South Lake, Tangshan

Dubai-VISION PACILION

Russia-Neftyanik light

Russia-Krasnodar Ferris wheel

Russia - Widenham Park Skating Range

Saudi Arabia-King Abdul Aziz Stadium

India-Moazzam Jahi Market

Vietnam - Muong Thanh Ha Long Center

Russia-Neftyanik light

Kaixian International, Yishui

Bank of Communications, Fujian Branch

Hangzhou Global Center

Wanxing Square, Fuzhou

The Source of Life, Lanzhou

Gear Sculpture at High Speed Intersections

The Beijing Shijingshan Amusement Park Ferris wheel

Gui'an Life Tree, Fuzhou

Dongchang Digital Building, Liaocheng

Taiwan LG Display Screen, Taiwan

Zhigu Technology, Yangzhou

Five Blessings Hall

Netherlands- Royal KPN Building in Rotterdam

Decheng Gold Jewelry Industrial Park, Fuzhou

India-hyderabad bridge

Renhe Square, Tengzhou

Russia-RIO market

acer Billboard, Taipei
