Product Application
To make high resolution, high brightness outdooradvertisement LED display and transparent LED display.
For outdoor, underground, underwater, parks and otherlandscape lighting.
To fabricate outdoor logo and perforated LED characterlight source
Used to make media facade screen for buildings.
To draw the contour of the buildings and bridges.
Specification
| Model No： | OUGE-DGY-30 | Lighting Fixture Size： | Ф30×11.7(mm) |

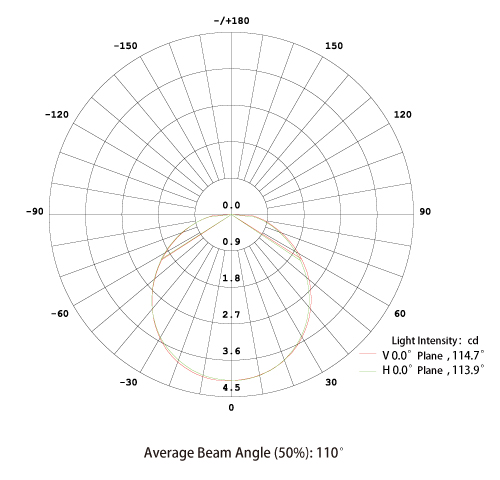

| Luminous Angle： | 115° | Outer shell Material： | Transparent Modified PVC |
| LED Color： | RGB/RGB+W/R/G/B/W… | Weight： | 17.5g/pcs |
| Protect Grade： | IP68 | Control Method： | ON/OFF、SPI、DMX512 |
| Impact resistance： | K10 | Voltage： | DC12V |
| salt spray test： | Anti-salt spray | Power： | 0.5W、0.8W、1W |
| Outer Shell Fireproof Grade： | V-0 | Environment： | Outdoor |
| Electrical Safety Class： | Category III | Environment Temperature： | -40℃~+55℃ |
| Safety Certificate： | CE；FCC；CB；BIS | Average lifespan： | 50000h |
ProductSpecifications And Parameters：
| No. | Control Method： | LED color： | Gray scale： | Voltage： | Power： | Standard Configuration： | Luminous Angle： |
| 01 | ON/OFF | R/G/B/W… | / | DC12V | 0.5W | 6pcs per series | 115° |
| 02 | SPI | R/G/B/W… | 8bit | DC12V | 0.5W | 6pcs per series | 115° |
| 03 | SPI | BGB | 8bit | DC12V | 0.8W | 3pcs per series | 115° |
| 04 | DMX512 | R/G/B/W… | 16bit | DC12V | 0.5W | 6pcs per series | 115° |
| 05 | DMX512 | RGB | 16bit | DC12V | 0.8W | 3pcs per series | 115° |
| 06 | DMX512 | RGB+W | 16bit | DC12V | 1W | 3+3pcs per series | 115° |
| 07 | DMX512 | RGB+W | 16bit | DC12V | 1W | 3+1pcs per series | 115° |
