Specification：

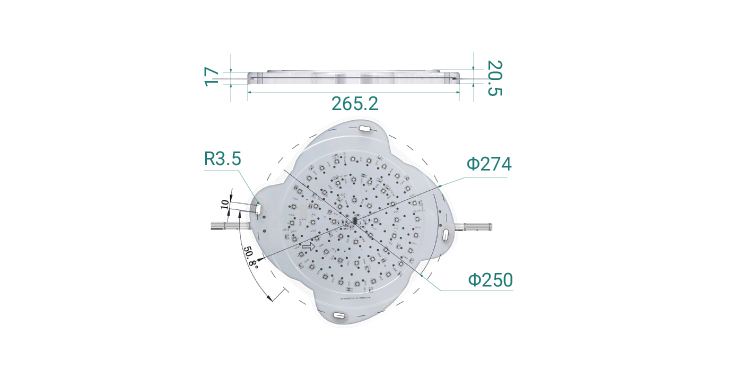

| Model No： | OUGE-DGY-250 | Lighting Fixture Size： | Ф250×20.5(mm) |
| Luminous Angle： | 120°-180° | Outer shell Material： | Transparent Modified PVC |
| LED Color： | RGB/RGB+W/R/G/B/W… | Weight： | 1.5Kg/pcs |
| Protect Grade： | IP68 | Control Method： | ON/OFF、DMX512 |
| Impact resistance： | K10 | Voltage： | DC24V |
| salt spray test： | Anti-salt spray | Power： | 12W、24W |
| Outer Shell Fireproof Grade： | V-0 | Environment： | Outdoor |
| Electrical Safety Class： | Category III | Environment Temperature： | -40℃~+55℃ |
| Safety Certificate： | CE；FCC；CB；BIS | Average lifespan： | 50000h |
ProductSpecifications And Parameters：
| No. | Control Method： | LED color： | Gray scale： | Voltage： | Power： | Standard Configuration： | Luminous Angle： |
| 01 | ON/OFF | R/G/B/W… | / | DC24V | 12W | 6pcs per series | 120°-180° |
| 02 | DMX512 | R/G/B/W… | 16bit | DC24V | 12W | 6pcs per series | 120°-180° |
| 03 | DMX512 | BGB | 16bit | DC24V | 12W | 3pcs per series | 120° |
| 04 | DMX512 | RGB+W | 16bit | DC24V | 12W | 6pcs per series | 120°-180° |
