This aluminum led linear lamp is inner built in XT-40 led linear light source. It enjoys high brightness lighting effects by double line led linear light source design. With “H” design of the aluminum profile, it’s convenient for installation and can keep nice shape.
In daytime, the led linear lamp can keep excellent and high grade daytime appearance. It can be used as building facade exterior wall outline decoration. The lamp has several designs like static single color, RGB etc. And can create dynamic lighting effects by cooperating with control system.
（Original product model：YD-CLXT-40）
Specification

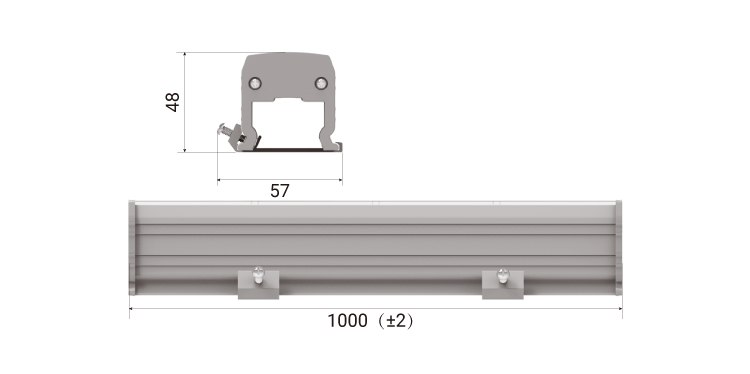

| Model No： | YD-XT-40A | Lighting Fixture Size： | 1000×57×48(mm) |
| Luminous Angle： | 120° | Outer shell Material： | Aluminum alloy |
| Gray scale： | 16bit | Weight： | 1035g/set |
| LED Color： | B+W/RGB/RGB+W/R/G/B/W… | Control Method： | ON/OFF、SPI、DMX512 |
| Protect Grade： | IP68 | Voltage： | DC24V |
| salt spray test： | Anti-salt spray | Power： | 12W、15W、17W、23W |
| Outer Shell Fireproof Grade： | V-0 | Environment： | Outdoor |
| Electrical Safety Class： | Category III | Environment Temperature： | -40℃~+55℃ |
| Safety Certificate： | CE；FCC；CB；BIS | Storage temperature： | -40°C~+80°C |
ProductSpecifications And Parameters：
| No. | Control Method： | LED color： | Voltage： | Power： | Standard Configuration： |
| 01 | SPI | R/G/B/W… | DC24V | 15W | 192pcs per series |
| 02 | SPI | RGB | DC24V | 17W | 72pcs per series |
| 03 | DMX512 | R/G/B/W… | DC12V | 12W | 144pcs per series |
| 04 | DMX512 | B+W | DC24V | 12W | 72+72pcs per series |
| 05 | DMX512 | RGB | DC24V | 17W | 72pcs per series |
| 06 | DMX512 | RGB+W | DC24V | 23W | 72+72pcs per series |
| 07 | ON/OFF | R/G/B/W… | DC24V | 15W | 192pcs per series |
