This point light source has a larger size＆higher brightness,high cost-effective.It mainly applied to landscape lighting of large building,underground lighting of park,outline drawing lighting of large bridge;it also could use to making of large advertising display,big city LOGO and light source of sign,underwater lighting for swimming pool,fountain,aquariumetc.
Specification
| Model No： | YD-DG-90 | Lighting Fixture Size： | Ф90×19(mm) |

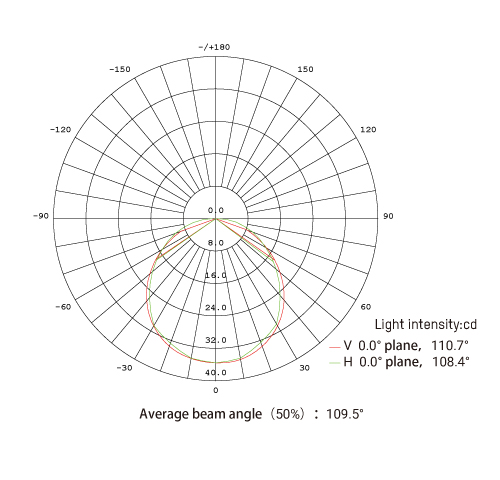

| Luminous Angle： | 110° | Outer shell Material： | Transparent Modified PVC |
| Center Distance： | min 120mm (customized) | Weight： | 114g/pcs |
| LED Color： | RGB/RGB+W/B+W/R/G/B/W... | Control Method： | ON/OFF、SPI、DMX512 |
| Protect Grade： | IP68 | Voltage： | DC24V |
| salt spray test： | Anti-salt spray | Power： | 2W、4.5W、5.5W |
| Outer Shell Fireproof Grade： | V-0 | Environment： | Outdoor |
| Electrical Safety Class： | Category III | Environment Temperature： | -40℃~+55℃ |
| Safety Certificate： | CE；FCC；CB；BIS | Storage temperature： | -40°C~+80°C |
ProductSpecifications And Parameters：
| No. | Control Method： | LED color： | Voltage： | Power： | Standard Configuration： |
| 01 | ON/OFF | R/G/B/W… | DC24V | 2W | 24pcs per series |
| 02 | DMX512 | R/G/B/W… | DC24V | 2W | 24pcs per series |
| 03 | DMX512 | B+W | DC24V | 2W | 12pcs per series |
| 04 | DMX512 | RGB | DC24V | 4.5W | 18pcs per series |
| 05 | DMX512 | RGB+W | DC24V | 5.5W | 18+18pcs per series |
